Automatic Refractometer

Product Details :

Product Code : HI-96801

Our in-depth knowledge and industrial expertise has enabled us to emerge as a reputed manufacturer and supplier of Automatic Refractometer. It is used for measuring the sugar content of aqueous solutions. We use optimum grade materials and components, sourced from trusted vendors to manufacture this device. Highly demanded in the market, this device comes in different technical specifications. We offer Automatic Refractometer at cost effective prices to clients.

Features:

• Compact design
• Fully automatic measuring system
• Accurate calibration

Further Details:

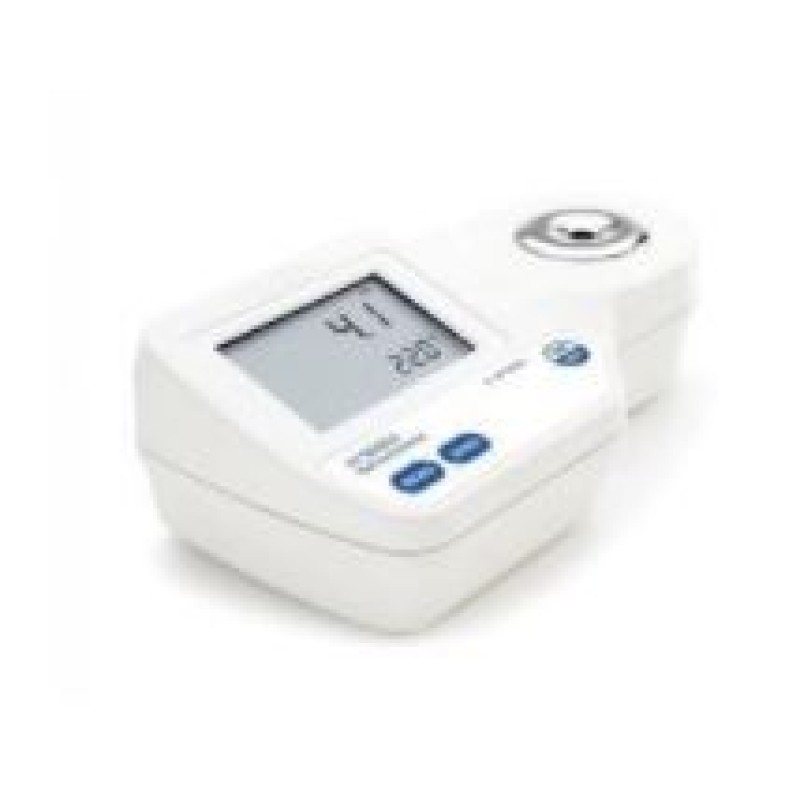

The HI96801 is a rugged, portable digital refractometer for food products is designed to report the sugar content of aqueous solutions as % Brix. The HI96801 report the results with an accuracy of ±0.2% Brix. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed with a 1.5 second response time. The sealed flint glass prism and stainless steel well are easy to clean. Just wipe with a soft cloth in preparation for the next sample.

Specifications :

Sugar Content Range0 to 85% BrixSugar Content Resolution0.1% BrixSugar Content Accuracy (@25ºC/77ºF)±0.2% BrixTemperature Range0 to 80°C (32 to 176°F)Temperature Resolution0.1°C (0.1°F)Temperature Accuracy±0.3°C (±0.5°F)Temperature Compensationautomatic between 10 and 40°C (50 to 104°F)Measurement Timeapproximately 1.5 secondsMinimum Sample Volume100 μL (to cover prism totally)Light Sourceyellow LEDSample Cellstainless steel ring and flint glass prismAuto-offafter three minutes of inactivityEnclosure RatingIP65Battery Type / Life9V / approximately 5000 readingsDimensions / Weight192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) / 420 g (14.8 oz.)Warranty2 year limited warrantyOrdering InformationHI96801 is supplied with battery and instruction manual
