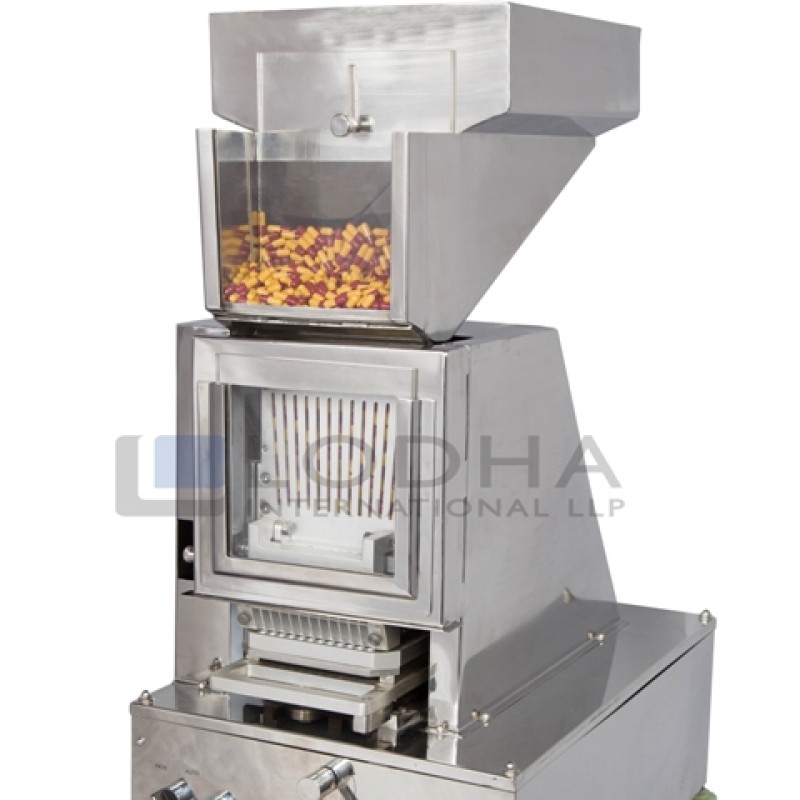

Automatic Capsule Loader is used in combination with manual capsule filling machine. With this combination the empty capsules are loaded in loading tray of manual capsule filling machine get nested through the magazine into the loading tray automatically orienting the cap up and body down.

Capsule Loader equipment has been ideal for medium scale pharmaceutical, Ayurvedic, Herbal products companies. The equipment is simple to operate it save time and labour. The automatic capsule loader machine is compact occupies minimum space; it gives higher production with much better standard of accuracy.

Special Features:

ü  Low investment high output significant difference in your production department Simple to operate, can be handled by semi-skilled person.

ü  Suitable to fill all standard sized capsules with appropriate size change parts.

ü  Easily removable parts.

ü  Automatically stop process after loading is done.

ü  Automatic Capsule Loader loads 300 capsules in 300-holes loading tray only in 28 seconds.

ü  Interchangeable parts are also supplied for any size capsule

Technical Specification:

Model: LI-ACL

Output:  36,000 capsules per/hour

Drive ¼ H.P, 3 phase, 440 volts,

Dimension length:  630 mm X 430 mm X 780 mm

Weight:  95 kilograms
