Specifications:
- sample Volume
- Range : 1 To 50ml Or 10 To 5000ml
- universal Motor : 220v/50 Hz, 500 Watts
- variable Speed : 10,000 To 29,000 Rpm
- Incremented By Scale weight : 1.6 Kg (drive Only)
- operating Environment : 0-40°c, 95%
- Rel Humidity motor Type : Universal Motor, 500 Watt
- voltage/frequency : 110v/60hz
- Speed Range (rpm) : 10,000 - 29,000
- warranty : 2 Years speed
- Control : 6 PositionControl
- Dial noise Emission : < 72 Db(a) At 30,000 Rpmph
- Range : 2-13
- dimensions (mm) : 250 L X 250 W X 700 H
- weight (kg) : 9.0 Kg (with Stand)
- fineness, (μm) : Suspensions & Emulsion 10-15 & 1-10

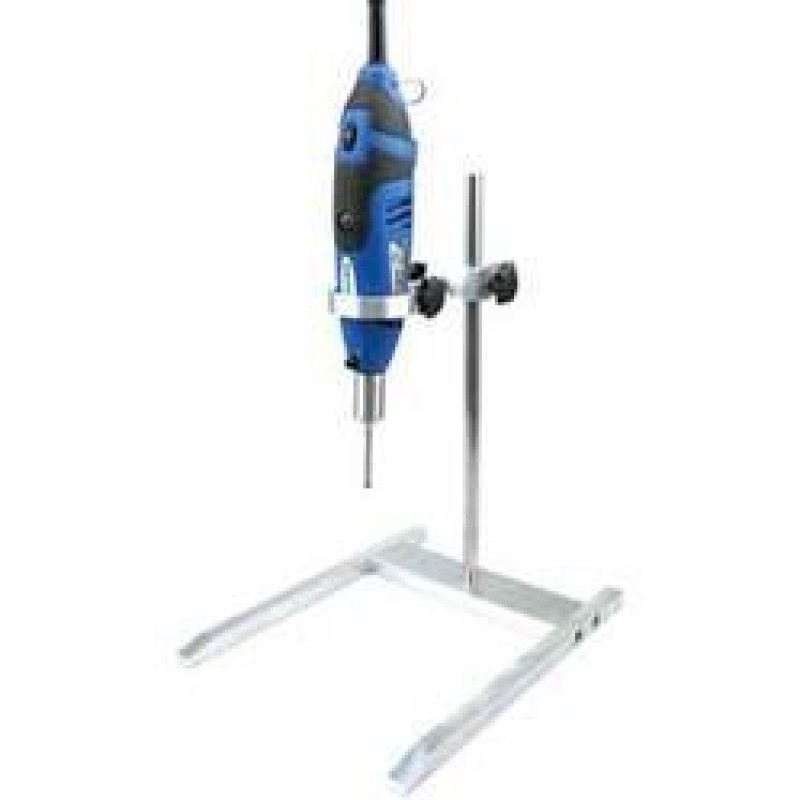

The Scilogex D500 Homogenize has a maximum speed of 29,000 rpm rate, and educes processing time significantly. Smooth motor drive makes working, very safe and comfortable. An overload protection feature increases the life span of the motor. Smooth acceleration also prevents unnecessary spills. Flexible configuration of different generators and rotors make the D500 highly adaptive to most applications. The generator shaft is constructed of quality 316L stainless steel. Reliable results are assured with extremely high precision and speed. Assembly and disassembly of rotors requires no special tools.
