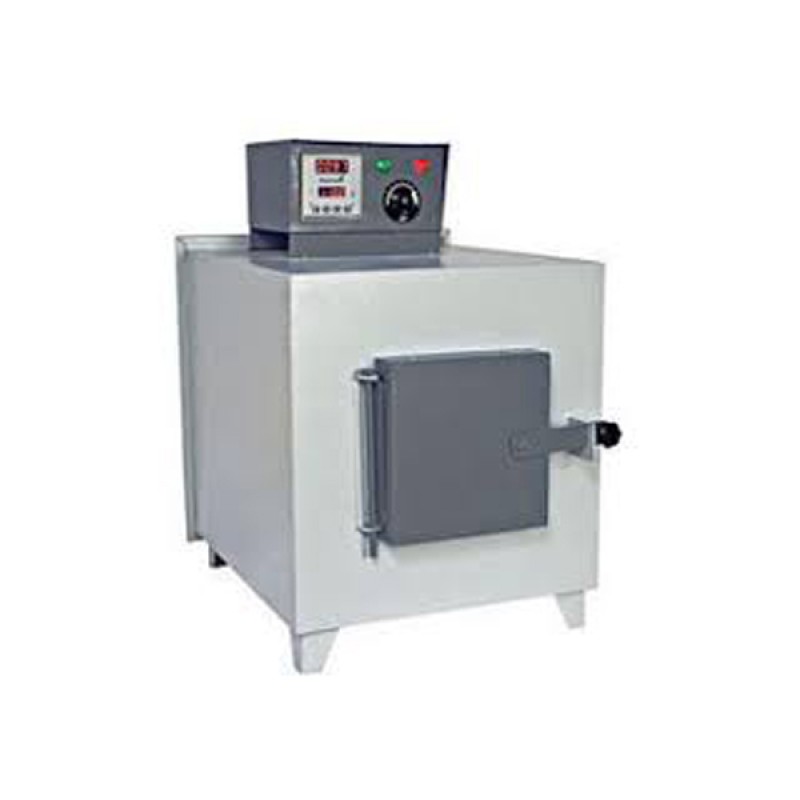

In this improved model, ceramic fiber wool insulation (instead of brick insulation) has been provided resulting in weight and size reduction of furnace. The weight and size of the furnace is 1/4 and 30% respectively as compared to brick furnace. The heat up time is less. heat loss is very low-resulting in power saving.
| Construction | CRC sheet with stoving enamel |
| Insulation | Ceramic fiber wool insulation |
| Max. Temp. | 1200°C |
| Working Temp | 1150°C |
| Temp.control | Dual display microprocessor based Digital temperature indicator cum controller with Cr/A1 Sensor |
| Heatings | KANTHAL APM wire in coil form wound on the muffle, embedded in high grade refractory Cement. |
| Std.Fittings | Compensating cable, indicating lamps, Power plug and cord. |
| Operation | 220/230 Volts AC single phase. |
| Working size (L X W X D) |
| 225 x 100 x 100 mm |
| 250 x 125 x 125 mm |
| 300 x 150 x 150 mm |
| 300 x 200 x 200 mm |
| 450 x 225 x 225 mm |
NOTE :
THE HEATING COILS OF THE FURNACE ARE WARRANTED FOR 1000 WORKING HOURS AT MAXIMUM WORKING TEMP. FROM THE DATE OF USAGE.
