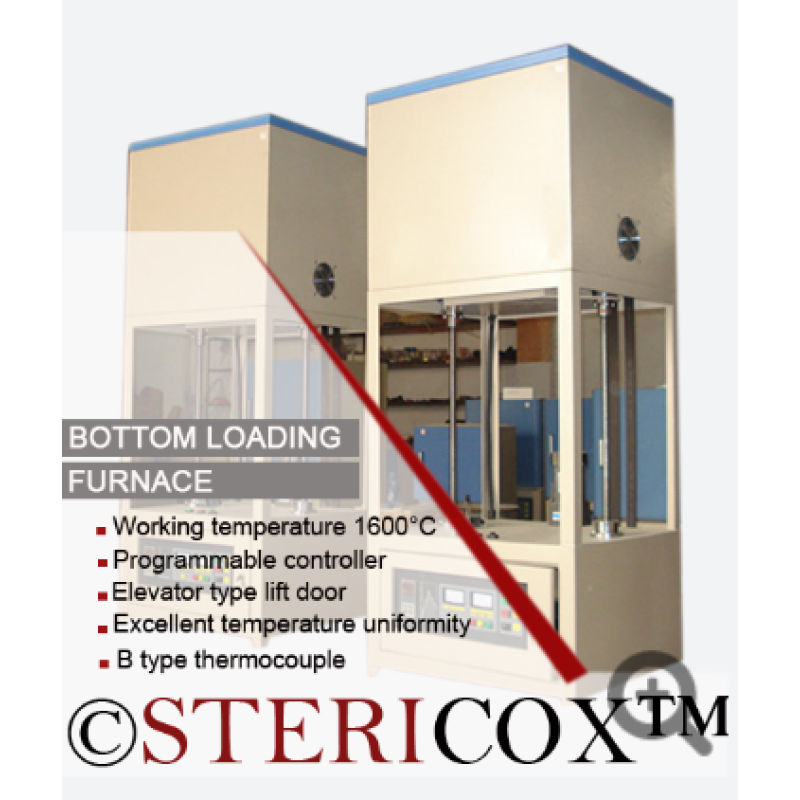

BOTTOM LOADING FURNACE

Bottom loading furnace is considered most uniform heat distribution furnace because heating elements are fitted all four sides of the inner chamber. In this furnace, door is fitted at bottom, which is lifted with smooth motor drive mechanism. In such furnace, material is put on bottom of the door; an electric elevator hearth lifts the door / bottom up and brings it to the heating zone. It is commonly used for firing ceramics and melting glass.

Our standard model of bottom loading furnace comes with 1600°C working temperature and equipped with four sides heating of Mosi2 heating elements. An imported programmable temperature is fitted at front side of the furnace which lets you select temperature ramp rate and soak time.

For more details including quotation and price, please email your query. We provide installation and delivery all over India at competitive price as compared to any international brand on the market.

FEATURES & BENEFITES

• Uniform heating from all four sides
• Available in 1600°C working temperature
• Programmable temperature controller w/ ramp & soak facilities
• Smooth motor driven door lifting mechanism
• Door safety limit switch; keeps heater off when door is open
• High purity fibrous alumina insulation
• Double walled steel structure w/ fan cooling

TECHNICAL SPECIFICATIONS

Max. temperature	1700°C
Working temperature	1600°C
Temperature accuracy	±1°C
Thermocouple	B type
Heating rate	0 – 15°C / min
Temperature  controller	Programmable PID controller Single program w/ 30 steps for Ramp & Soak Built-in auto tune function
Heating element	U shape Mosi2 heating elements
Furnace chamber	1800°C ceramic fiber board
Door	Motor driven bottom loading door
Standard fittings	Load indicator Volt & Amp meters Mains ON/OFF switch
Safety features	Over temperature protection Door safety limit switch keeps heater off when door is open
Optional	Fume exhaust port Inert gas function

STANDARD SIZES / DIMENSIONS

Model	Inner Chamber (W x D x H)	Inner Chamber (W x D x H)	Volume
STXBLF1	100 x 100 x 100 mm	4 x 4 x 4 Inch	1 Liter
STXBLF3	150 x 150 x 150 mm	6 x 6 x 6 Inch	3 Liters
STXBLF5	150 x 150 x 200 mm	6 x 6 x 8 Inch	5 Liters
STXBLF8	200 x 200 x 200 mm	8 x 8 x 8 Inch	8 Liters
STXBLF12	200 x 200 x 300 mm	8 x 8 x 12 Inch	12 Liters
STXBLF28	300 x 300 x 300 mm	12 x 12 x 12 Inch	28 Liters
