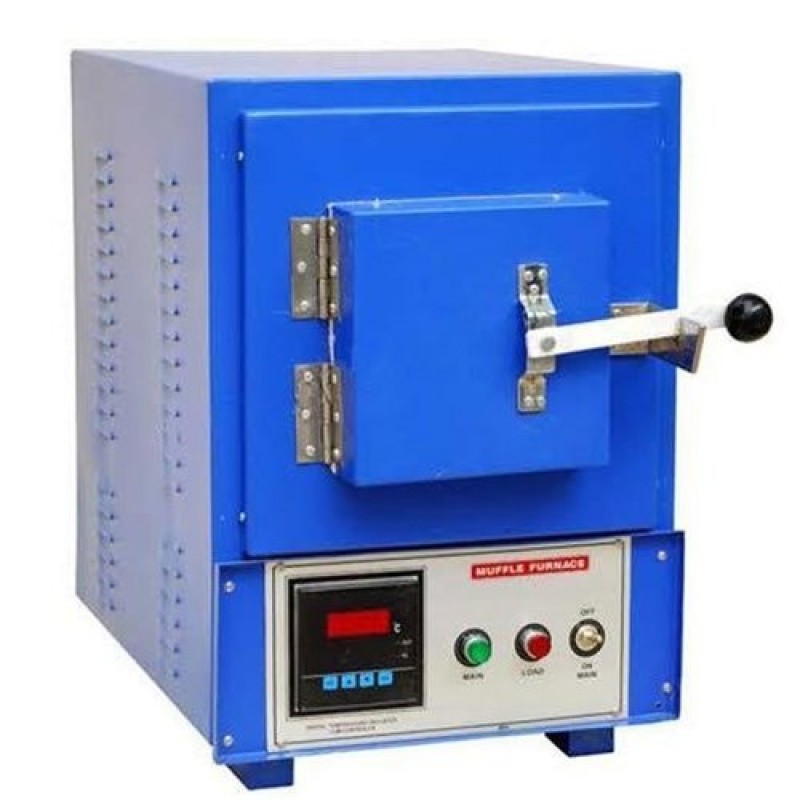

High-Temperature Muffle Furnace
Product Details :
| Melting Material | Iron |
| Material Loading Capacity (T) | 5 L |
| Power Source | Electric |
| Type of Furnace | Fix |
| Max Temperature | 900-1000 Degree Celsius |
| Rated Power (KW) | 3 kW |
| Input Voltage (V) | 220-240 V |
| Brand | SSU |
| Model Name/Number | SSU-124 |
| Frequency | 50 Hz |
| Material | MS |
MUFFLE FURNACE
Grooved refractory with ceramic fiber wool insulation (instead of brick insulation). The outer casing is made of double wall m/s sheet with powder cotied paint. Heating elements are made of kanthal “a-1” wire and Backed by high-temperature Carpool insulation, which avoids loss of energy. Temperature control unit of p I d controller, fitted in front of furnace with two pilot lamps. Thermocouple, Silver thermal fuse, main lead with power plug. To work on 220/230 volts a.c
High-Temperature Muffle Furnace
- Views: 164
-
Sanjeev Scientific Udyog - Product Code: SSU-124
- Availability: In Stock
