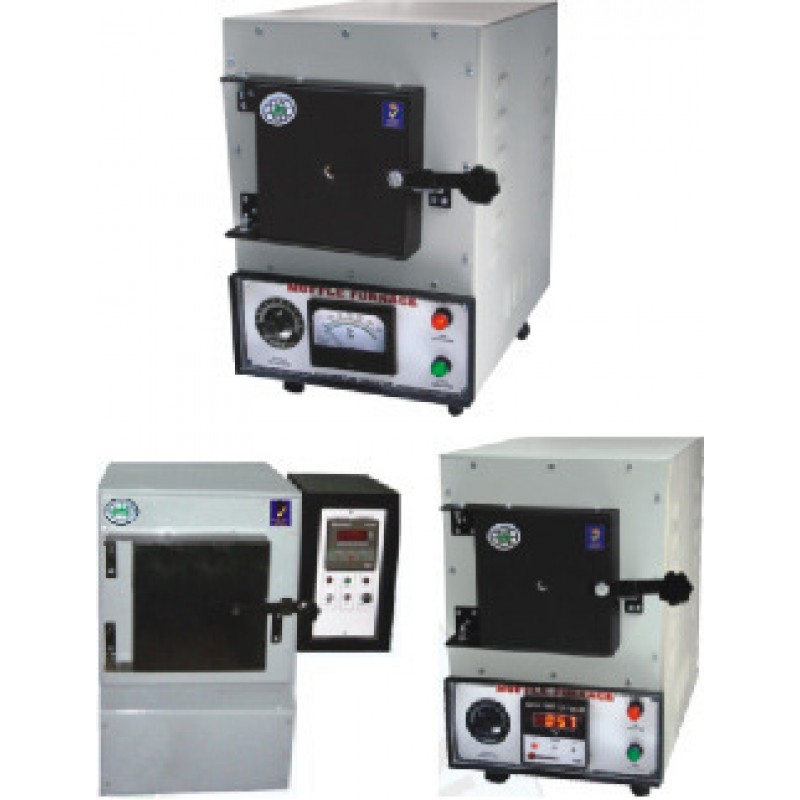

Laboratory Electrical Muffle Furnace
Product Details :
Being a quality oriented organization; we are the leading entity of Laboratory Electrical Muffle Furnace. These are developed by professionals using the advanced technology and reliable component, which is obtained from dependable merchants of market. To uphold the quality, our product is developed under the supervision of industry professionals. This product is tested in terms of quality by quality controllers for providing a defect free range.
Features:
- Outer casing is made of Double walled Thick / CRC/Mild Steel Sheet duly powder coated
- Better ceramic Blanket High Temp. Insulation to avoid heat loss.
- Chamber construction includes a long life grooved refractory chamber to support Kanthal heating Element on 3 sides through its walls its feature include : quick Temperature rising, Lasting warranty & constant Temperature.
- Better Precise Digital Temperature Controller Cum Indicator having Alarm facility at high Temp. easy operation.
- Kanthal A-1 Super quality Coil shaped Heaters duly wounded (in case of 900°C Temp.) & 1200°C range coil shaped open heater heavy gauge to stand continuous Temp. up to 1150°C.
- Silicon Rods are provided in case of High Temp. 1350°C high Temp. Furnace, supplied with Transformer unit & Pt-Pt RH Thermocouple its control manually & automatically the Amps. of silicon rods as per Temp. requirement
- Unique design of ventilation / Chimney provided at the back of the Muffle Furnace (For Fumes outlet)
Technical Specifications:
| Model | UTS 1.07/ 1.08 A | UTS 1.07 A/ 1.08 B | UTS 1.07 B/ 1.08 C | UTS 1.07 C/ 1.08 D | UTS 1.07 D/ 1.08 E |
| Interior (mm) | 100 x 100 x 225 4" x 4" x 9" | 125 x 125 x 250 5" x 5" x 10" | 150 x 150 x 300 6" x 6" x 12" | 175 x 175 x 415 7" x 7" x 19" | 200 x 200 x 300 8" x 8" x 12' |
| Heater Wattage "W" | 900°C/ 1.5 KW 1150°C/ 2.5 KW | 900°C/2.0 KW 1150°C/ 3.0 KW | 900°C/ 3.5 KW 1150°C/ 4.0 KW | 900°C/ 3.5 KW 1150°C/ 4.5 KW | 900°C/ 4.5 KW 1150°C/ 4.5 KW |
Technical Parameter:
Control Panel :
- Mains, Load Indicator , Sunvic (ER) Regulator & Mains Indicator, Temp. controller.
Temperature Range :
- Ambient to 900 °C
- Ambient to 1150 °C
- Ambient to 1350 °C
Temperature Stability :
-2°C or better Duty Cycle : Continuous Insulation : High Ceramic Blanket & Board Insulation Housing Material : CRC / Mild Steel Sheet duly Powder Coated Optional : Outer body of S.S 304 grade (Can be made against order) Interior : Ceramic Board & Grooved Refractory Chamber as per Temp. Requirement Power Consumption :Single Phase 220/230V, AC - 10% 50Hz & 3 phase 440V Optional : RS 232 Communication interface
