Muffle Furnace

Product Details :

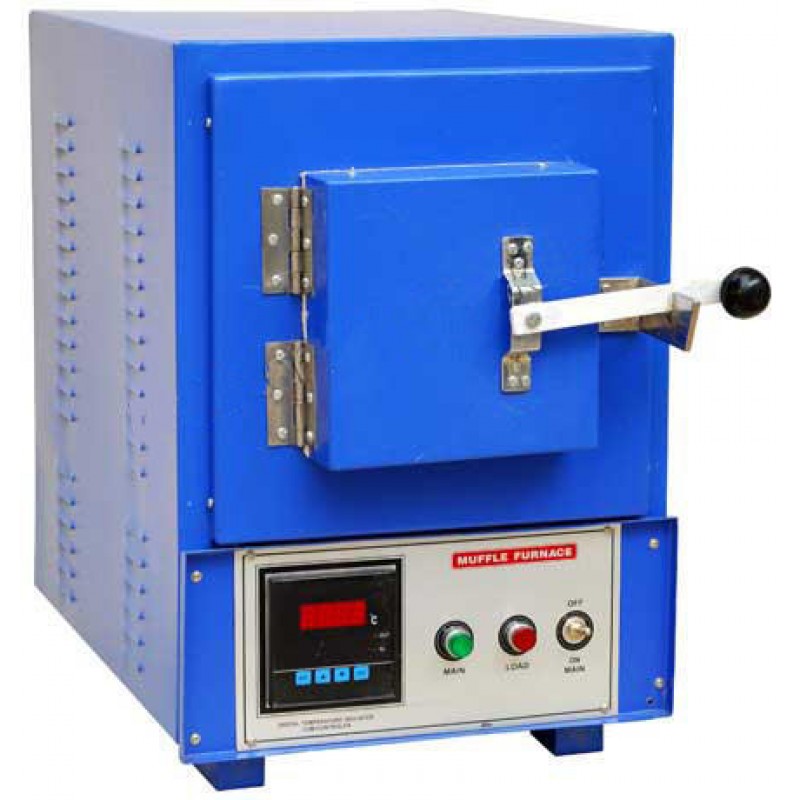

Rectangular Muffle Furnace

Code:282

Discription:

The Casing Made Of Thick Mild Steel Reinforced With Iron Angles Riveting Screw Joints And Welding Wherever Necessary And Powder Coated. Heating Chamber Consisting Of Rectangular Horizontal Shape Totally Enclosed Muffle Baked At 1500d C. Heating Elements Made Of High Temperature Kanthal Wire Surrounded Into The Heating Chamber, Heat And Protects Heating Elements Against Damage And Chemical Deterioration. Highly Efficient, Light Weight, Insulation Is Cast Permanently Into The Furnace Body. All Furnaces Are Equipped With A Dependable Indication Pyrometer Having 3.5 Scale Calibrated In 20d C Increments To 1200d C With Mounting Bracket Attached To The Furnace Pyrometer Equipped With Chrome Alumel Thermocouple. Temperature Of The Furnace With Two Indicating Lights Which Glow While The Furnace Is on. The Furnace Is Complete With One Pyrometer, Thermocouple, Thermal Fuse, 2meter Main Lead With Lead Power Plug To Work On 220/230 Volts Ac.

Cat. No.    Muffle Size    Rating

282/01    100x100x225mm    1.6kw

282/02    125x125x250mm    2.5kw

282/03    150x150x300mm    3.0kw

282/04    175x125x350mm    3.5kw

Additional Information:

• Item Code: 282
