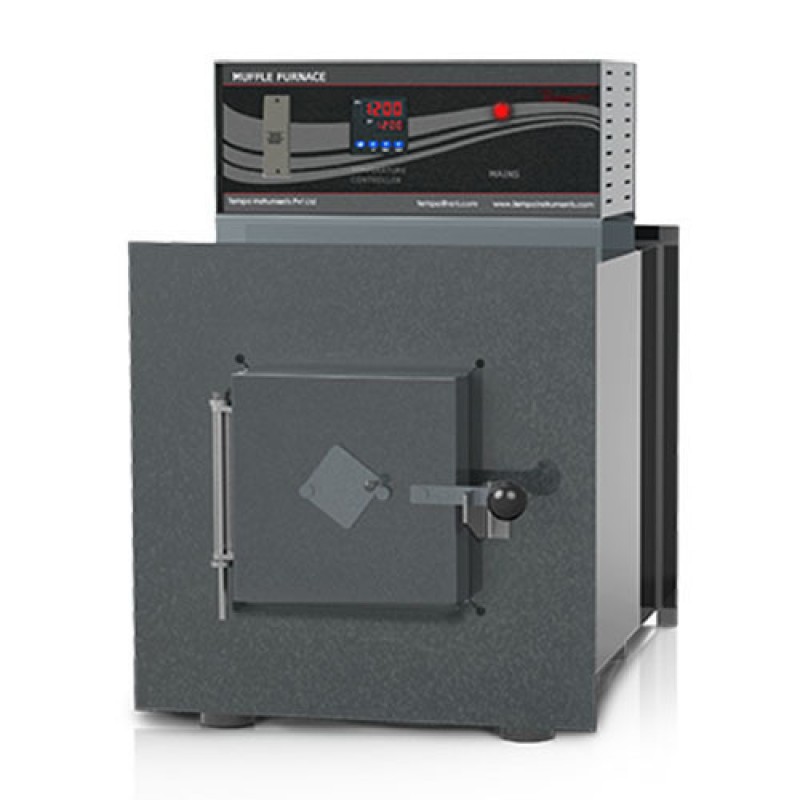

Muffle Furnace Stainless Steel GMP
Product Details :
Type Of Model | Laboratory, Industrial |
Features | Energy Regulator, Thermocouple, Digital Display |
Max Temperature ( C) | 1200-1500, 900-1000, 1000-1100, 1100-1200 |
Muffle Furnace Gmp Model
Code:282 Ss
Description:
The Casing Made Of Stainless Steel Reinforced With Iron Angles Riveting Screw Joints And Welding Wherever Necessary. Heating Chamber Consisting Of Rectangular Horizontal Shape Totally Enclosed Muffle Baked At 1500d C. Heating Elements Made Of High Temperature Kanthal Wire Surrounded Into The Heating Chamber, Heat And Protects Heating Elements Against Damage And Chemical Deterioration. Highly Efficient, Light Weight, Insulation Is Cast Permanently Into The Furnace Body. All Furnaces Are Equipped With A Dependable Indication Pyrometer Having 3.5 Scale Calibrated In 20d C Increments To 1200d C With Mounting Bracket Attached To The Furnace Pyrometer Equipped With Chrome Alumel Thermocouple. Temperature Of The Furnace With Two Indicating Lights Which Glow While The Furnace Is on. The Furnace Is Complete With One Pyrometer, Thermocouple, Thermal Fuse, 2meter Main Lead With Lead Power Plug To Work On 220/230 Volts Ac.
Cat. No. Muffle Size Rating
282/01 Ss 100x100x225mm 1.6kw
282/02 Ss 125x125x250mm 2.5kw
282/03 Ss 150x150x300mm 3.0kw
282/04 Ss 175x125x350mm 3.5kw
Additional Information:
- Item Code: 282SS
