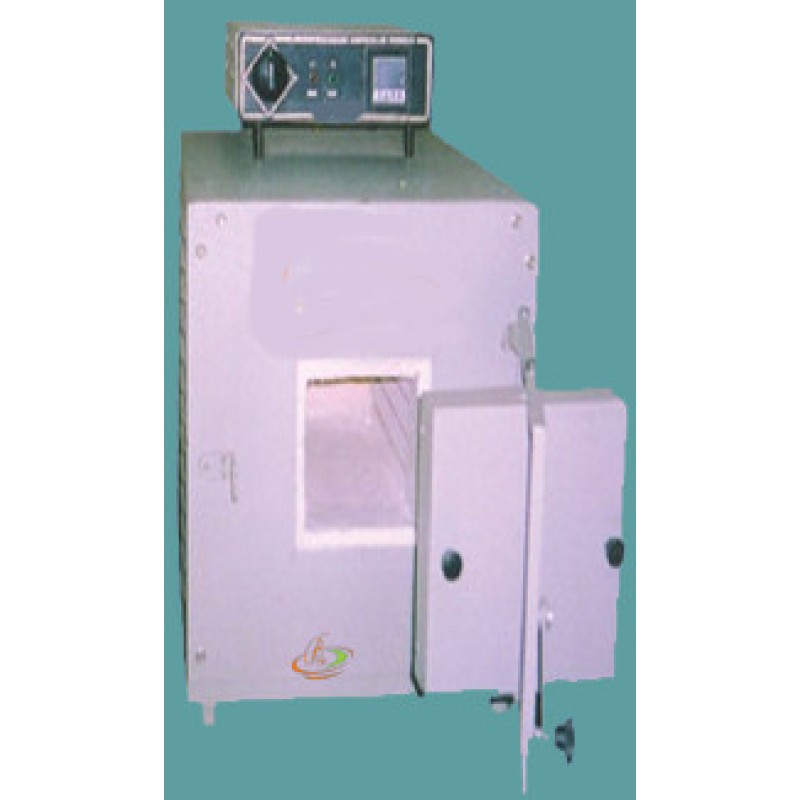

Zonotech Muffle Furnace
TECHNICAL SPECIFICATION
- LightWeight with ceramic Fiber wool insulation (instead of Brick insulation).
- Outer casting is made of double walled thick P.C.R.C. sheet, finished with attractive powdercoating.
- Element are made of KANTHAL "A-1 " wire in coil form.
- Insulation by Zirconia cerewool. which avoids loss of energy, this arrangement also assures the most uniform distribution of heat.
- A viewing cap is also provided onthe door
- Temperature controlled by "Microprocessor Digital Indicator cum Controller" fitted in thefront ofthe Furnace.
- To work on 220/230 Volts or440/440 Volts A.C. 3 Phase supply.
Model | Inner Size | Rating |
WxHxD | Rating | |
MF - 12D | 100 x 100 x 225 mm 14. x 4" x 9") | 2.5 K.W. |
125x 125 x 250 mm (5" x 5" x 10") | 3.° KW. | |
Max. Temp : 1200°C. | 150 x 150 x 300 mm (6" x 6" x 12") | 4.0 KW |
Working Temp. : 1150°C. | 200 x 200 x 300 mm 18" x 8" x 12") | 5.0 K.W. |
200 x 200 x 450 mm 10 x 8" x 18°) | 8.0 K.W. | |
300 x 300 x 300 mm 112" x 12" x12") | 6.0 K.W. | |
300 x 300 x 450 mm 112" x 208") | 9.0 K.W. | |
300 x 300 x 600 mm (12" 0 12" 024") | 12.0 K.W. |
