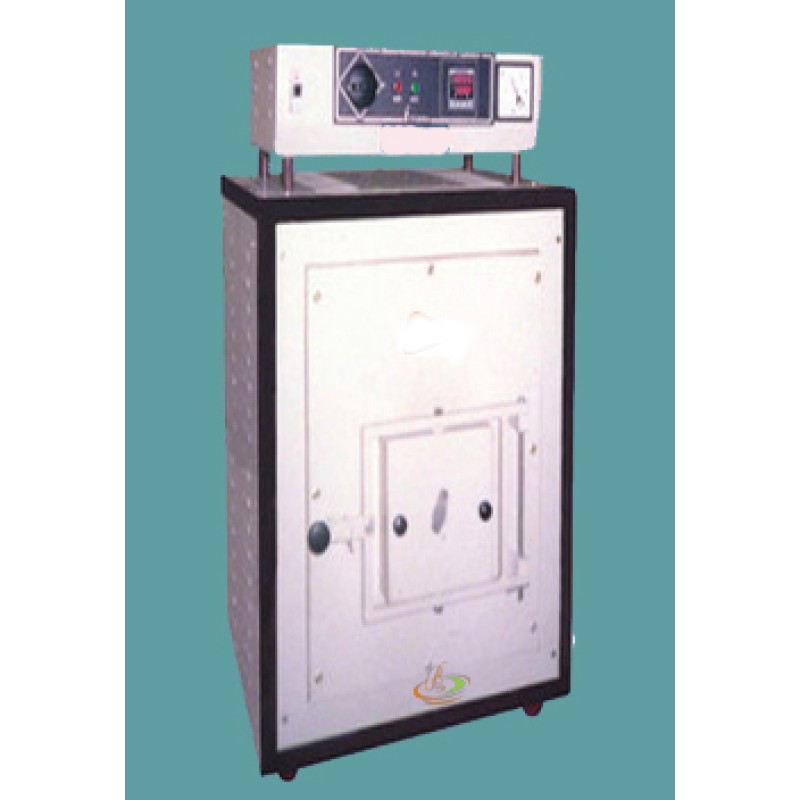

Zonotech ZF-14P 1400 High-Temperature Muffle Furnace
Product Details :
| Maximum Temp. | 1400°C |
| working Temp. | 1350°C |
| Temp. Accuracy | ±1°C |
| Heating Elements | Silicon carbide.Spiral type,with end connection eaisly replaceable. |
| Inner Chamber | Creamic board with base plate of silicon carbide, with heating elements placed on the top. |
| Insulation | Creamic fibre of zirconia grade. |
| Construction | Tripple walled with air insulation on the outer side for minimal skin temp. |
| Body | Made of mild steel duly powder coated. |
| Door | Parallel action hinged type insulated with creamic fibre and has a viewing cap. |
| Power Control | Scr Unit(Phase Angle Thyristor) |
| Temp. Control | Microprocessor based PID Digital set point controller.Dual display of set & actual temp.with soft touch keys with thermocouple break protection and cold junction compensation.CE mark to meet EMC regulation |
| Sensor | Pt/Pt - Rh 13% |
| Safety | Cut off of power to the heating elements when the door is opened.Over current and short circuit protection Thermocouple break alarm.High temp alarm. |
| Power Supply | 220 volts,single phase AC supply. |
