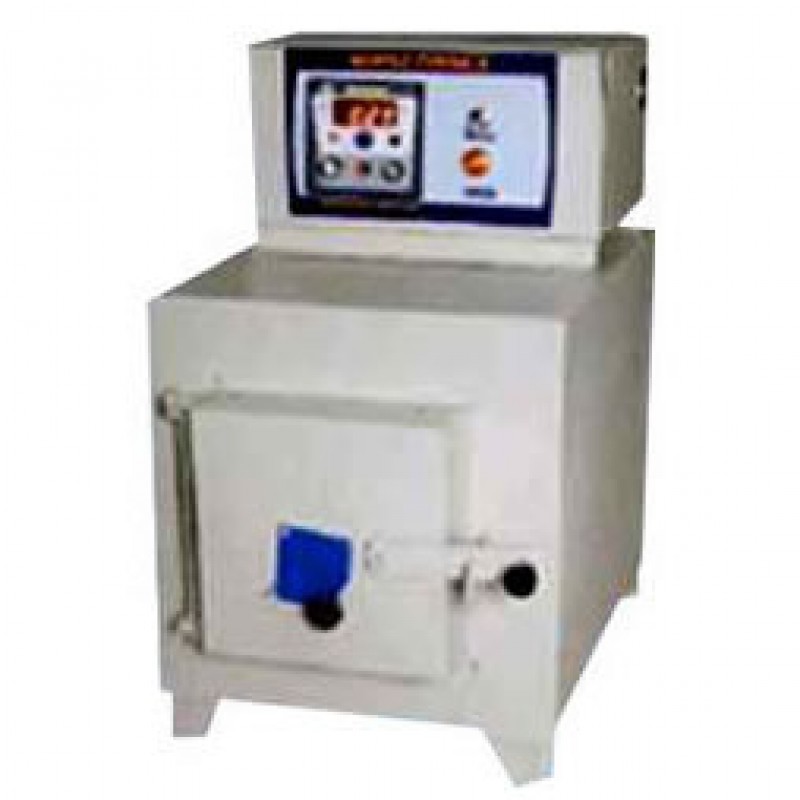

Muffle Furnace

Industrial muffle furnaces are specially designed to suit IS & ASTM Standard. IT is applied in growing fields of Medical research, agricultural, industrial, metal treatment, ash determination & wool industries.


Technical Specification:

  • Outside Body made of M.S. Sheet powder coated
  • Inner muffle of Ceramic with high grade ceramic instillation
  • Door insulation of HFK brinks
  • Heating element are made from kant hal A1 Wire
  • A Uniform distribution through all 4 sides with mental wire
  • Max. Working temp up to 1160 ˚C
  • Equipped with digital temp. Controller cum indicator fitted on top side of the unit with indicating lamps & switches
  • A special type of thermocouple fuse for safety to avoid over heating
  • Power supply 230 Volts, 50 H2


Optional Accessories:

  • Digital Timer
  • Solid state fuses for extra safety
  • PID Controller with printer interface.


Sizes available for industrial muffle furnaces are as below.

Inner Dimension

Outer Dimension

Rating K. W.

Power consumer

Net weight

9"x4"x4"

18"x14"x14"

2

9

30 KG

10"X5"X5"

19"X15"X15"

2.5

11

40 KG

12"X6"X6"

21"X17"X17"

3.5

15

55 KG

18"X9"X9"

28"X20"X20"

6

26

80 KG
