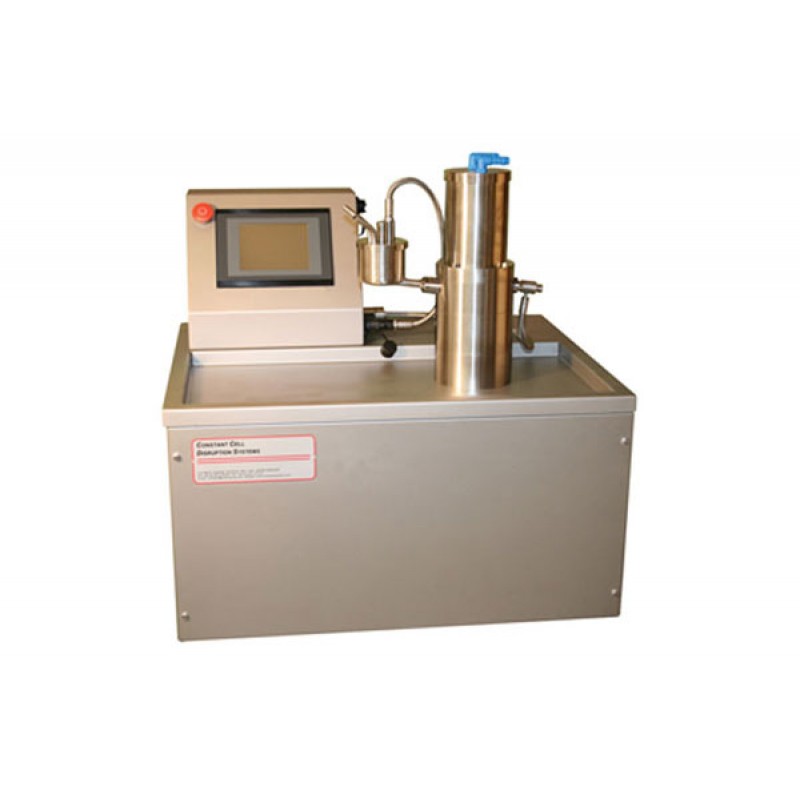

High Area Inlet Valve Arrangement

Brand-Constant systems


Specifications

Power RatingFlow Rates vs Maximum Pressure
 40 KPSI (2700 bar)30 KPSI (2000 bar)20 KPSI (1350 bar)15 KPSI (1000 bar)
0.75 KW40ml / min55ml / min80ml / min105ml / min
1.1 KW100ml / min140ml / min200ml / min275ml / min
2.2 KW170ml / min235ml / min340ml / min470ml / min
4 KW300ml / min415ml / min600ml / min825ml / min
  • Incorporates our unique disruption head, precise hydraulic operating and control system with an automatically supplied, continuous flowing Cell disrupter
  •  Designed to process viscous or awkward samples such as filamentous fungi
  •  Dimensions and specifications same as the standard continuous flow models
  •  Available as an alternative inlet arrangement on all continous flow models
  •  Inlet area 5 times larger than standard machine
  •  Automatically guards against build up on inlet passage way
