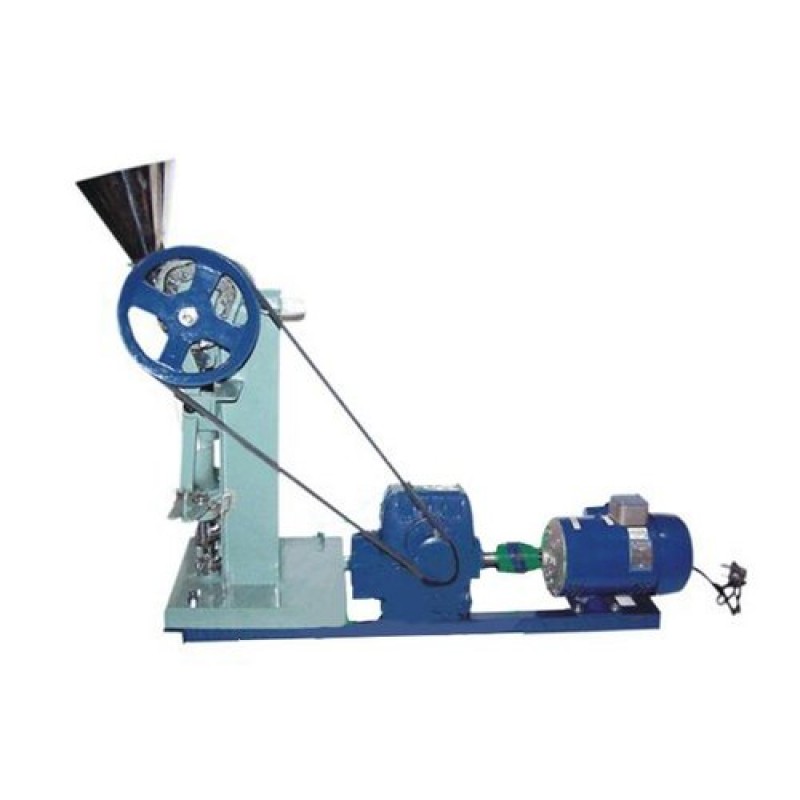

Single Punch Tablet Making Machine
Product Details :
Power | 0.37 Kw |
Weight | 50 kg |
Output | 4500-6000 pc/min |
Max. Diameter | 12 mm |
Max. Thickness | 6 mm |
Filling Depth | 12 mm |
Tablet making machine, Single punch for making tablets upto 1000 mg. & as per size of the punch 6 mm. Automatic compression & ejection device with each revolution of the wheel drive, automatic feed & removal of acentric pressure system. stainless steel hopper provided & connected by a rubber tube. Easy setting for thickness & hardness of tablets with nuts & lock nuts, set of two spanners provided as necessary tools. Machine comes fitted with a die punch of 9 mm. 6 mm & 12 mm die punches are provided at an extra cost against order.
