Super High Frequency Induction Coil Triple SHFT-02e
Product Details :

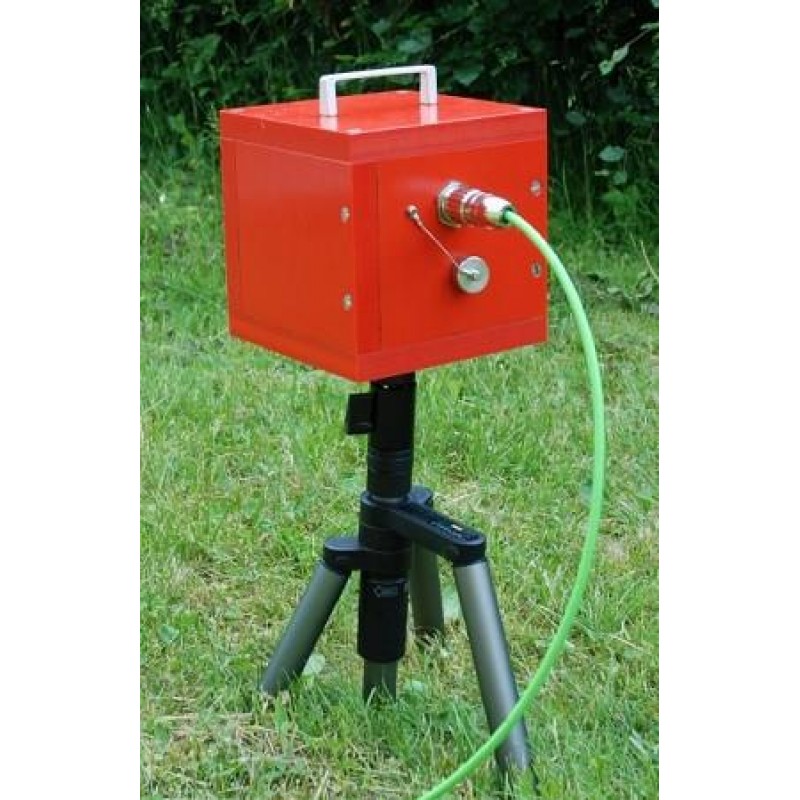

SHFT-02e Super High Frequency Induction Coil Triple
The Super High-Frequency induction coil Triple SHFT-02e has been developed for applications in Audio Magnetotellurics (AMT), Radio Magnetotellurics (RMT) and Controlled Source Magnetotellurics (CSMT). It covers a frequency range from 1 kHz up to more than 300 kHz.. The SHFT-02e shows outstanding low-noise characteristics, and a stable transfer function over temperature and time. The SHFT-02e is a result of more than 35 years of experience of metronix in the design, manufacture and application of induction coil magnetometers.
Only one SHFT-02e is required to measure the magnetic field variations in 3 orthogonal axis. The sensors and its electronics are enclosed in a shock resistant plastic case. The SHFT-02e is connected to the metronix ADU-07 data logger (or any other custom electronics) by a cable of up to 10 m length. The high quality of the SHFT-02e data is achieved by a unique design for the ultra low noise preamplifier.
SHFT-02e Technical Specifications
SHFT-02e Technical Specifications | |
|---|---|
Frequency Range | 1kHz - 300kHz |
Frequency Bands | 1kHz - 300Hz (chopper off) |

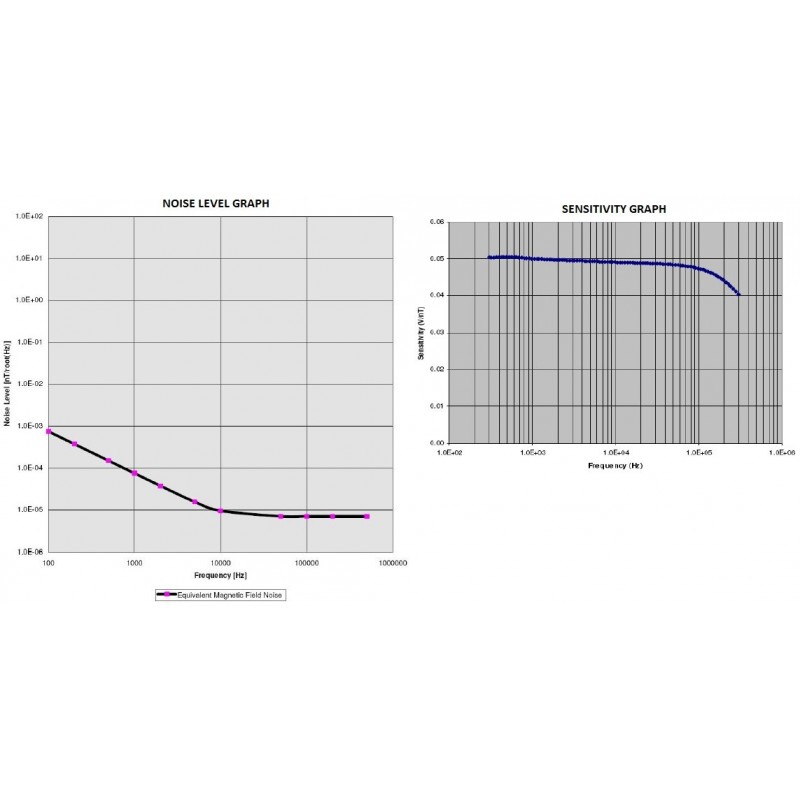

Sensor Noise | 5 x 10-5 nT/√Hz @1Hz |
Output Sensitivity | 0.05 V/nT f > 1kHz |
Output Voltage Range | ± 10V |
Function | Induction coil with current amplifier |
Connector | 17 Pole M23 Connector |
Supply Voltage | ± 12V to ± 18V internally stabilized and filtered |
Supply Current | ± 60mA |
Case | Rugged, Waterproof Case |
Weight | Aprrox. 5.5 Kg |
External Dimensions | L:170 x W:190 x H:170 mm |
Operating temperature range | -25°C to + 60°C |
