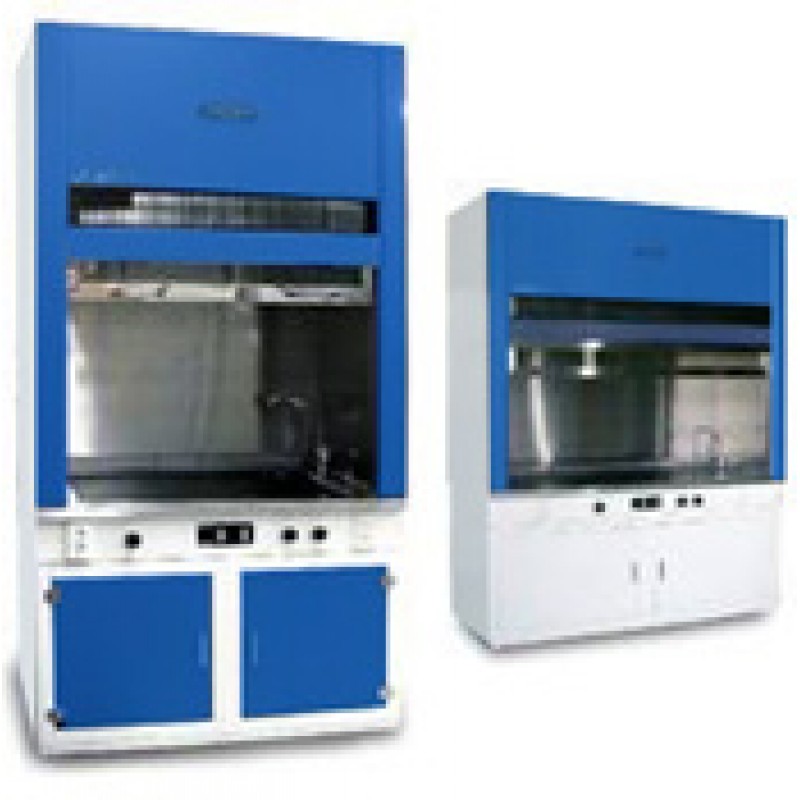

SPECIFICATION

• Fabricated out of Mild Steel Powder coated steel and stainless steel frame.
• Inner made of Stainless steel.
• These are designed so as to throw-out all toxic/harmful vapors, thus protecting costly instruments and the person working in the lab.
• Fume hood working area, of gases, vapour, toxic particles, odour
• Inner Working Table made of stainless steel
• Working table top is made of Synthetic ceramic Tile and a small wash basin with connections provided for inlet and outlast of water.
• Bio gene fume hood standard design.
• The front door moves vertically up and down with concealed counter balanced weight. EN14175-3 test

TECHNICAL PARAMETERS

• Model BTI-FH-1200
• Size -(W*D*H) 1200 X 600 X 650mm
• Work Surface Height 550mm
• Display LCD Display
• Duct 8” 200mm
• Airflow Velocity Average of 0.3~0.5m/s at SASH open 1296 cbm @70p

Material

Main Body: Cold-rolled Stainless steel Frame with anti- bacteria powder coating Work Table: Synthetic ceramic Tiles Side and Front Windows:5mm toughened glass anti-UV Pre-filter Polyester fiber, washable

• HEPA Filter 99.999% efficiency at 0.3um
• Air Volume 1550
• Noise <60dB
• Front Window Motorized (OPTIONAL)
• Max Opening 430mm
• Fluorescent Lamp 25W*1 800 Lux or 74.3 foot (candles)
• UV Lamp
• 30W*1 Emission of 253.7 nanometers Consumption 400W
• Waterproof socket Two, total load≤500W
• Caster Universal caster with leveling feet
• Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
• Standard Accessory
• Fluorescent lamp, UV lamp*2,Base stand, Gas Tap, Water proof socket*2
• Granite work surface
• Standard Base Cabinet
• Exhaust blower
• Airflow monitor
• Nitrogen valve
• Installation of
•  BACK SIDE AIR COMPENSATION To avoid turbulence in Work.
• The unit is fitted with Dual fluorescent light and a gas cock for gas/air
• supply.
• Metal clad fluorescent light & metal clad socket 02 Nos.
• gas cock etc.
• The front facing panel is fitted with 15/5 Amp socket with switches for exhaust
• system and fluorescent light.
• To work on 110 & 220 volts A.C. Supply. 50 Hz AC.
• Steel: High quality,cold rolled, mild steel meeting requirements of ASTM A1008; gauges U.S. Standard and galvanized.
• Bio gene fume hood working table is heavy gauge stainless steel, sink, 02Nos
• Ceiling closure panels.
• SASH Xeric or Safety glass: 7/32” thick laminated safety glass or 3/8” thick
• laminated safety glass viewing panel
• Sash pull: Full width corrosion resistant steel with chemical resistant powder coating. Maximum 1.5” thick.
• SASH opening at maximum 550mm
• Gaskets: White 70 durometer PVC for interior access panels.
• Gasket interior access panels to eliminate air leakage and to retain liquids inside hood.
• Fume hood liner: Poly resin Reinforced polyester panel; smooth finish and white color in final appearance.
• Apparatus storage has base cabinet with MS Power coated self and double skinned door with leveling screws and height of 34”.
• Centrifugal blower – 1nos. comprises of PP + FRP lined blower with FRP – Vinyl ester impeller and PP motor housing of 8” & 10” inch 1000 CFM, 1400 RMP, 1/3 H.P. KEC/CGL Make motor, 50 mm W.G. (ACLB 350)
• Rigid ducting of PP + FRP, Flexible ducting with flanges, bends, dampers transitions, clamps up to blower, with valve & hose mounted outlet Flexible joint will be provided in ducting in order to avoid transmitting of blower vibrations to hood.
• Electrical services: Three wire grounding type receptacles rated at
• 120 V.A.C. at 20 amperes. Provide. Flush plates:
• Durable white epoxy coated 16 gauge steel exterior and interior. Black acid resistant thermoplastic
• Built-In Utility cabinet
• Application based work platform,
• granite/ceramic tiled MICROPROCESSOR BASED CONTROLLER LED Display Level Digital LED display: Airflow

OPTIONAL ACCESSORIES

• FC mounting base with storage and door fully made of powder coated. Steel Sheet for longer life & durability.
• Exhaust system & installation charges.
• Foot switch:Use foot switch to adjust the height of front window
• Acid resistant ceramic tile work surface.
• S.S lining on work area walls.
• Lead lining on work walls for use as radio-lsotope Fume Hood.
• Fume duct per running feet.

TAPERED FIBERGLASS EXHAUST COLLAR OUTLET

Transitions exhaust air quietly and enhance airflow uniformity. The tapped PP exhaust collar be able to reduce turbulence, static pressure loss, noise. Exhaust heavy duty industrial PVC pipe Exhaust outlet complete with bends fixtures of 12.o” inches and booster extractor fan (expel air) with 0.5A –a GX9 (1350 RPM) single phase motor. Average height of exhaust outlet set at 15M complete with capping. Oval PP Drip cup and compatible SFUN & SFD FW also Fume Hood operate safely at 0.5m/s at(457mm) or full open sash position. Fume Hood lighting through a pre wired, electronic ballast. Standard service fixtures to include:1 remote controlled water fixtures, 1w remote

FUNCTIONALLY ROBUST BYPASS

The unique design provides a robust stream of bypass air into the hood cavity.

DISTILLATION GRIDS OBSERVATION WINDOW

Transparent side glass windows maximize light and visibility inside the cabinet

HOT ZONE BAFFLES The unique Hot Zone Baffles draw most contaminants back in single pass displacement of the air. Thus the Thermal Heat Relief is quickly achieved. The bottle system is covered with phenolic Resin Laminates. AERODYNAMIC FOIL ENTRY

Provides maximum airflow“sweep” on the critical boundary layer near to the work surface level to reduce turbulence and eliminate backflow.
