Specifications:
- Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen.
- Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement during the upper end of a calibrated torsion spring.
- Vane dia, rod dia, vane size & vane height as per IS specifications.
- The Vane Shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle of torque on a dial graduated in degrees.
- The dial reading multiplied by spring factor gives the torque. A container for soil sample is also supplied, and a sampling tube of 38 mm I.D. & 150 mm long can also be used as container.
- Supplied with set of four springs, one each of approx. 2 kg.cm., 4 kg.cm., 6 kg.cm., and 8 kg.cm. Complete as above in a wooden carrying case.
- 50 cycles, A.C.suppl
- Approx: 2 kg.cm., 4 kg.cm., 6 kg.cm., and 8 kg.cm
- Similar to above but electrically operated. Rate of rotation is 1/60 r.p.m. Suitable for operation on 230 volts

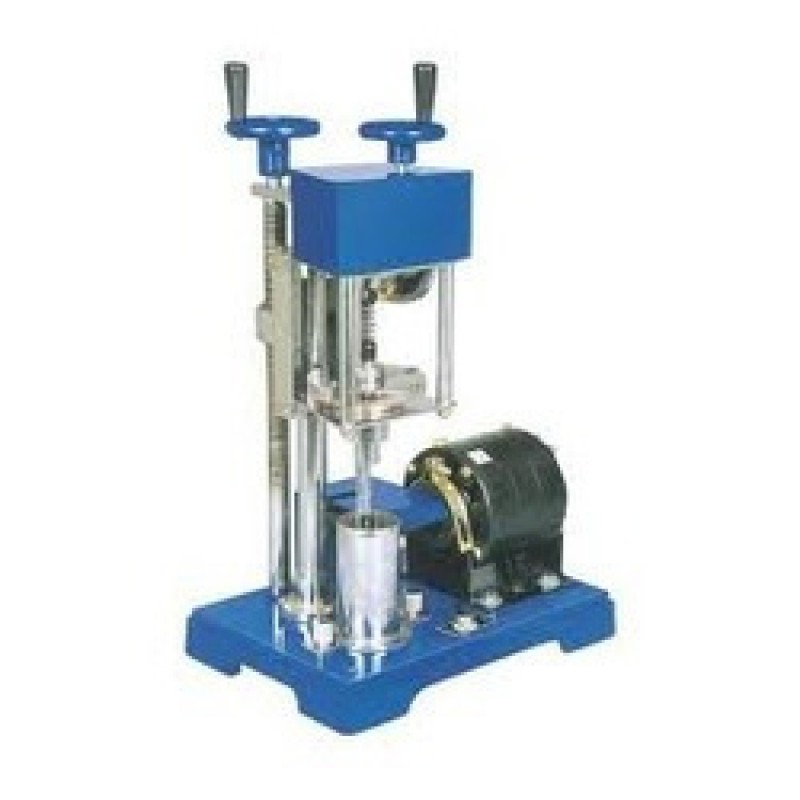

Laboratory Vane Shear
- Views: 278
-
K J Enterprise - Vendor Type: Manufacturer, Supplier
- Product Code: KJE0000032
- Availability: In Stock
- ₹0
