Features:
- PC configuration interface
- Calibrated measurement range switching
- Switchable
- clipping capability limits the standard analog signal to the upper range values
- Safe 3-way isolation with 2.5 kV test voltage acc. to EN 61140
- Input signal: -100 mV ... +100 mV, 0 mV ... 200 mV to 0 mV ... 1000 mV (in steps of 100)
- Output signal voltage: 0 … 5 V; 1… 5 V; 0 … 10 V; 2 … 10 V
- Output signal current: 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA

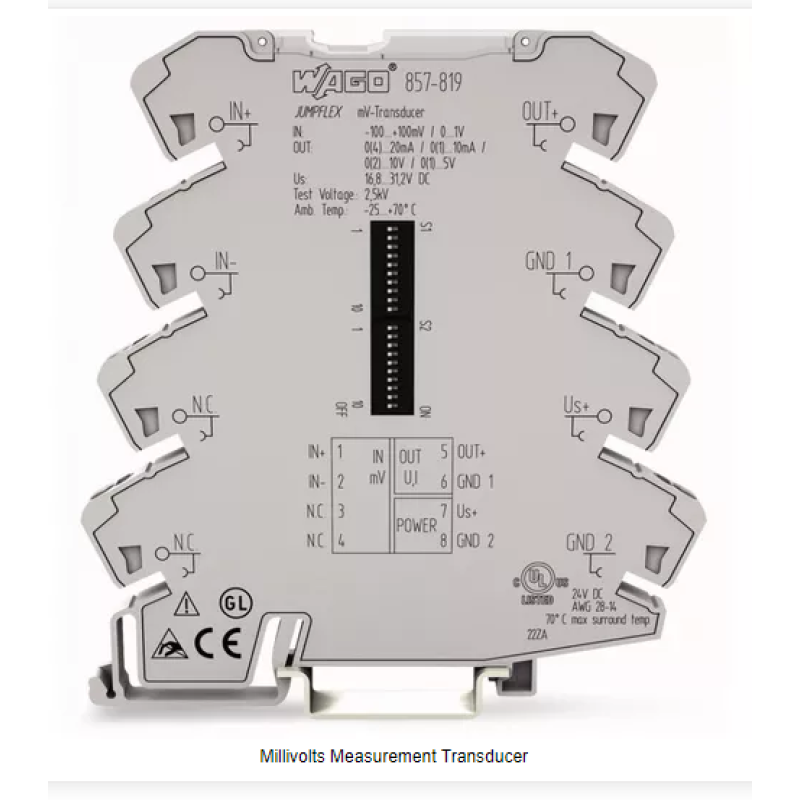

Millivolts Measurement Transducer
- Views: 322
- Vendor: ICES Solutions
- Vendor Type: Manufacturer, Supplier, Trader
- Product Code: ICESS00034
- Availability: In Stock
- ₹0
