Technical Specification

• Wavelength Range : 230 nm, 260 nm, 280 nm
• Minimum Sample Size : 0.5 2.0 ul
• Path Length : 0.2 mm (For high concentration measurement)1.0 mm (For ordinary)
• Light Source : Xenon Flash LampAbsorbance Precision : 0.003 Abs
• Absorbance Range : 0.02 - 80 (10 mm equivalent)Detects Nucleic Acid up to : 10~5000 ng/ul (dsDNA)
• Detects Protein up to : 0.1 mg/ml~100mg/mLMeasurement Time : < 5 sDimensions (W x D x H) mm : 210 x 280 x 166 mm
• Sample Pedestal Material : Aluminum Alloy & Quartz Fiber
• Operating Voltage : 12V DCOperating Power Consumption : 12 - 18 W

Features:

• Direct, easy measurements in less than 5 seconds
• Require only 0.5~2 ul samples
• No cells or cuvettes and no warm up
• Optional data output via built-in printer, SD-RAM Card, USB memory
• Touch screen and panel operation, without computer
• No dilutions for samples

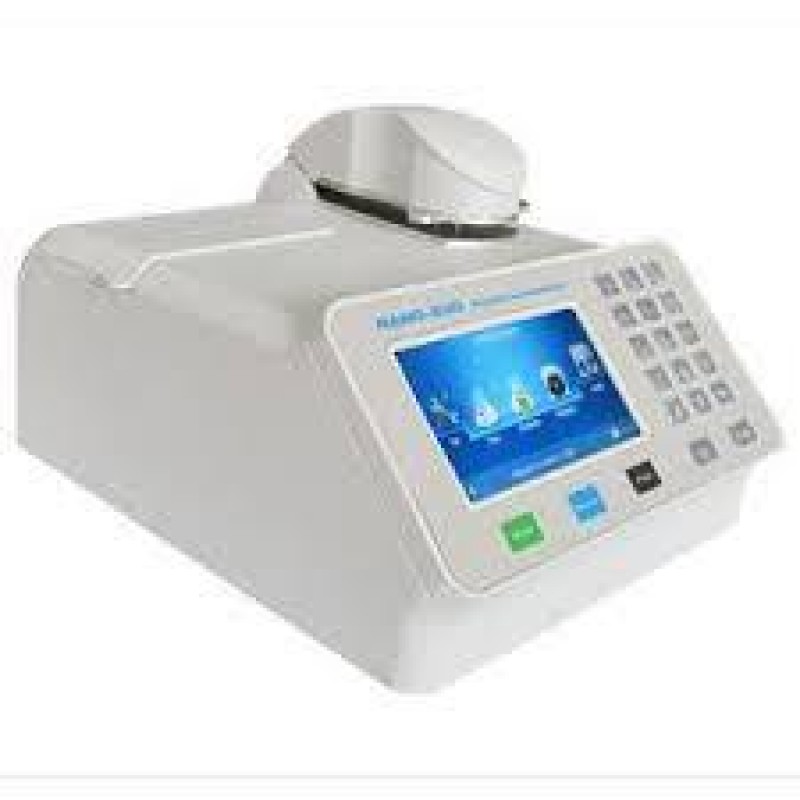

• Nano-200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure of NucleicAcid (DNA/RNA). Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm,Nano-200 can automatically complete the measurement within 5 seconds.
