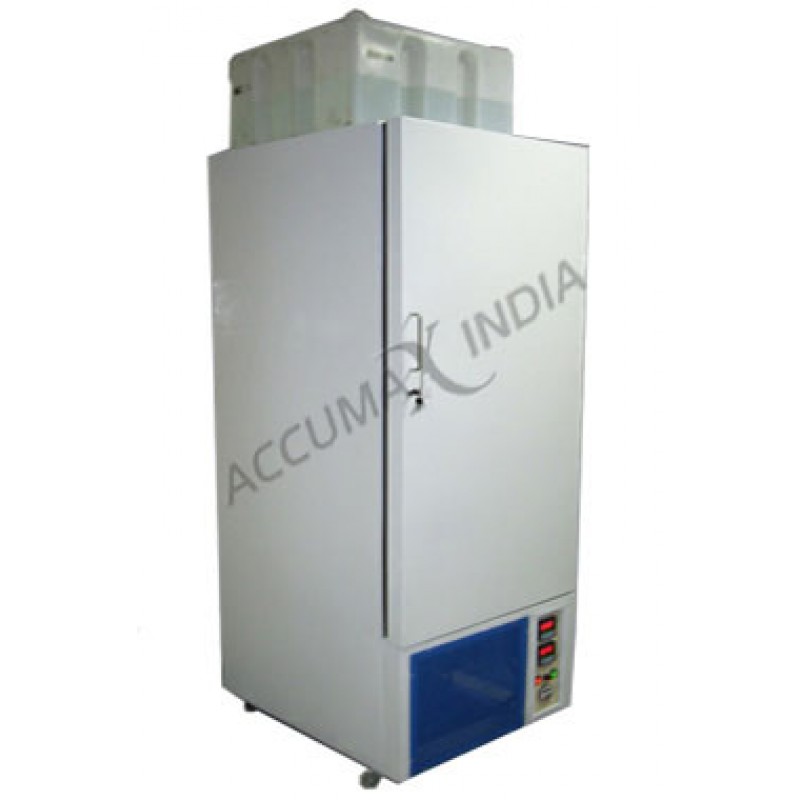

Plant Growth Chamber offered find application in research processes and feature optimum lighting support for vascular plants so as to provide for :-

• Standard plant production
• Plant pathology experimentation
• Seedling germination & development
• These plant growth chambers are designed so as to provide for maximum growth area are also suited for genetic studies that comprise -
• Arabidopsis
• Plant physiology
• Early growth studies of seedlings

Features :

• Mild steel double walled construction from outside that comes powder coated as well as in puff insulated finish
• Perforated adjustable shelves of stainless steel from the inside
• System designed to provide for temperature control from 5oc to 50oc as well as humidity control from 55% to 95%
• Digitally controlled finish with desirable illumination control provided through cyclic timer
• Made available in sizes of 455 x 410 x 610, 6 cu.ft; 505 x 415 x 830, 10cu.ft; 570 x 550 x 875, 12 cu.ft; 650 x 580 x 900mm
• Coming with wheels support for optimum mobility support
• System designed to work on 220 v ac supply
• Full view inner plexi-glass door finish that provides for easy inspections and monitoring of inside chamber specimens without causing any disturbance in process temperature
• Comes with support of magnetic door gasket for external door
• Coaxial blower support provided for forced air circulation at back
• System designed to maintain optimum temperature uniformity as well as homogeneity
• The support of PUF insulation also provided for optimum thermal stability as well as brings reduction in electrical energy consumption
• Features presence of door operated illumination lamp that comes fitted inside chamber for visibility purposes
• Presence of finned tube evaporator that provides for uniform and faster cooling
• Safety thermostat provided for preventing overheating
• Exterior illumination provided with support of fluorescent lamps tubes that provides for artificial daylight conditions

Technical Specifications :

• Temp. 5oc to 50oc, humidity control from 55% to 95% at cool temperature
• Type: Forced Convection Type
• Compressor: Hermetically Sealed
• Temperature Range: Ambient 5oc - 60oc ±1oc
• Humidity: By Steam Process
• Humidity Range: 5% above Ambient From 55% To 95% RH+5%RH at Cool Temperatures
• MOC Outer: Mild Steel Sheet Powder Coated
• MOC Inner: Stainless Steel
• Safety: Thermostat
• Illumination: Exterior Illumination with Fluorescent Tubes
• Controller: Microprocessor Based Temperature-Humidity Controller
• Programmable Timer
• Illumination: Exterior Illumination With 5 Levels Light Control (0%, 25%, 50%, 75% And 100%)
• Size Inner(WxDxH): 455 x 410 x 610mm 505 x 415 x 830mm 570 x 550 x 875mm 650 x 580 x 900mm
• Electrical Supply: 220/230V AC, 50/60Hz
