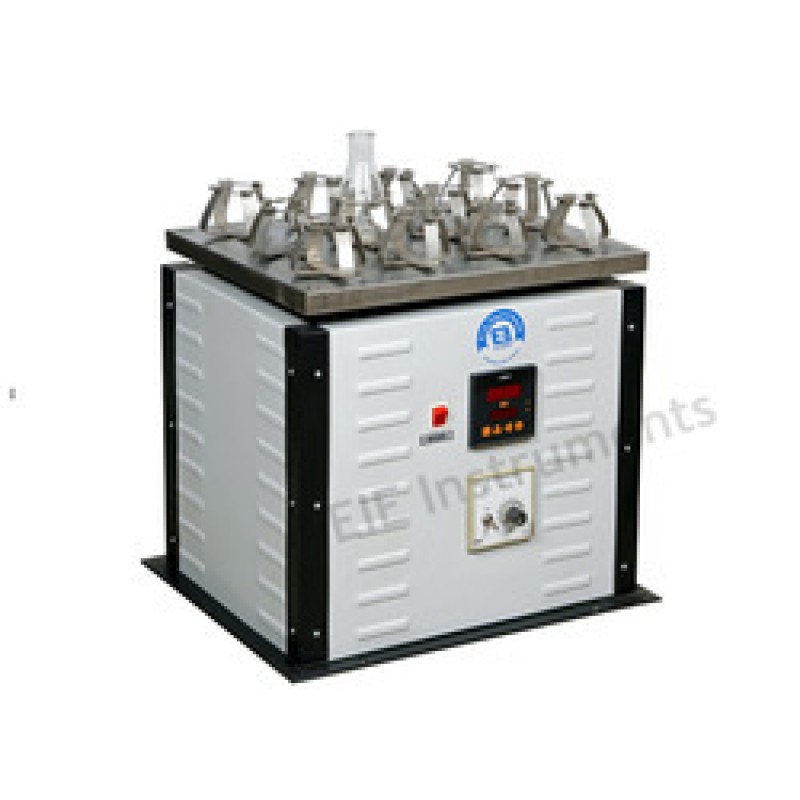

- Useful for uniform mixing by circular motion in a horizontal plane with a circuit diameter of about 25 mm. Used extensively in tissue culture work, aeration of fermentation and other chemical mixing procedures. The driving mechanism is enclosed in a mild steel sheet cabinet beautifully painted.
- The shaker is fitted with DC Motor with electronic speed regulator. The DC Motor will ensure continuous work and precise speed control.
- The shaking speed will be 50-250 RPM approx. The top platform have neoprene rubber discs to hold conical flask in between them.
Platform Size To Hold
12" x 12" 9 flasks of 250 ml
18" x 18" 16 flasks of 100-250 ml.
24" x 24" 36 flasks of 50 ml.
24" x 24" 25 flasks of 250 ml.
24" x 24" 16 flasks of 500 ml.
24" x 24" 9 flasks of 1000 ml.
36" x 36" 49 flasks of 100 ml.
36" x 36" 36 flasks of 250 ml.
36" x 36" 36 flasks of 500 ml.
36" x 36" 16 flasks of 1000 ml.
48" x 48" 100 flasks of 100 ml.
48" x 48" 81 flasks of 250 ml.
48" x 48" 64 flasks of 500 ml.
48" x 48" 49 flasks of 1000ml.
48" x 48" 16 flasks of 2000ml.
60" x 60" Cap. Of flask as per requirement.
18" x 18" 16 flasks of 100-250 ml.
24" x 24" 36 flasks of 50 ml.
24" x 24" 25 flasks of 250 ml.
24" x 24" 16 flasks of 500 ml.
24" x 24" 9 flasks of 1000 ml.
36" x 36" 49 flasks of 100 ml.
36" x 36" 36 flasks of 250 ml.
36" x 36" 36 flasks of 500 ml.
36" x 36" 16 flasks of 1000 ml.
48" x 48" 100 flasks of 100 ml.
48" x 48" 81 flasks of 250 ml.
48" x 48" 64 flasks of 500 ml.
48" x 48" 49 flasks of 1000ml.
48" x 48" 16 flasks of 2000ml.
60" x 60" Cap. Of flask as per requirement.
