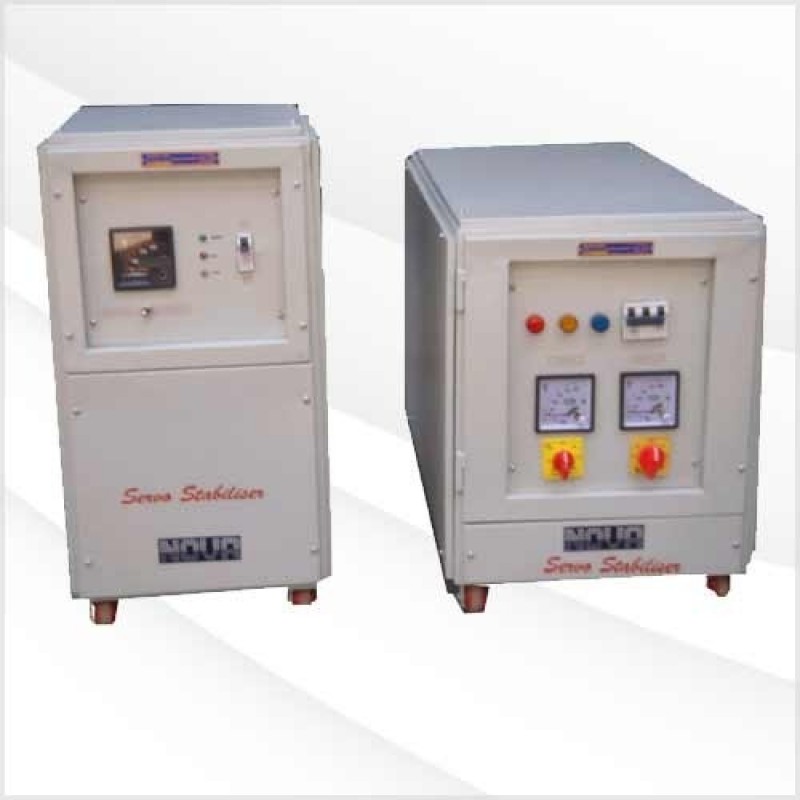

Most suitable for Research Instruments, Digital & Precision Instruments, Microprocessor Instruments, Controlled Power Supply for Laboratories.

Complete with High/Low Voltage cut-off, Voltmeter, RF Filter MCB, Spike Protector etc. built-in.

Input : 150-300 V or 170-270 Volts. Output : 230 V +/- 1%.

SALIENT FEATURES

• Solid State control unit using integrated circuits. No relay.
• Built-in Micro circuit breaker to protect short circuit.
• High efficiency (Better than 95%)
• 1% regulation from no load to full complete range of input voltage.
• Unaffected by load power factor.
• Zero waveform distortion.
• Overload protection through circuit breaker.
• Built-in meter to monitor input and output voltage.
• Facility of manual operation from front panel control.
• Interchangeable control card.
• High speed of correction (35 V/second) Max.
• Remote sensing facility (Optional).
• Visual indication for High-low input voltage.
• Under/Over voltage protection - Built-in.

CAPACITY (KVA)-SINGLE PHASE

• 1.0
• 2.0
• 3.0
• 5.0
• 10.0
• 15.0
