Brand-Constant systems

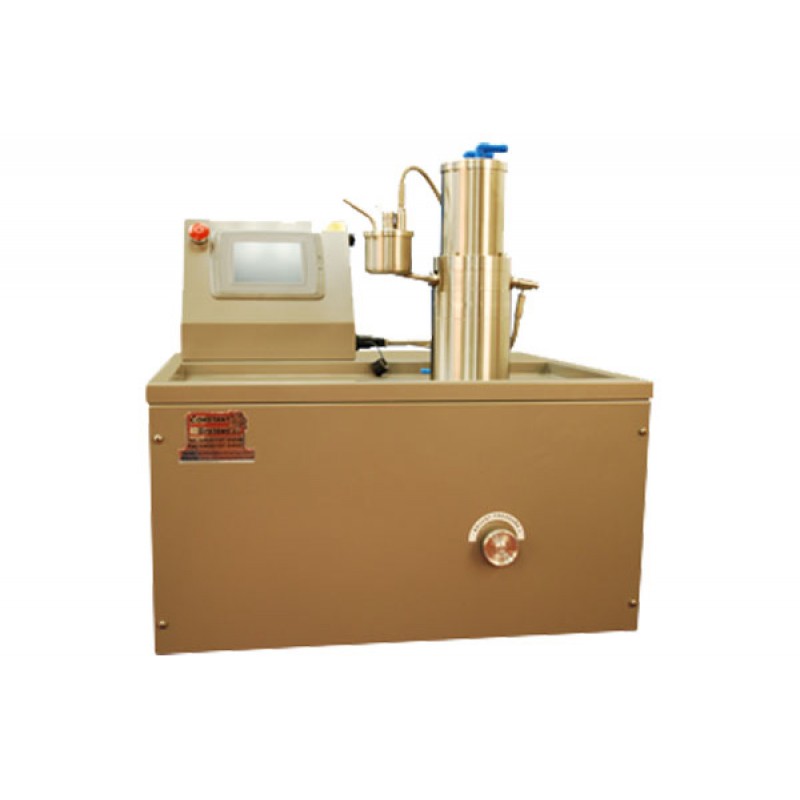

TS Series Bench Tops are the ideal pilot models and are versatile enough to adapt as your needs change.
Specifications
Power Rating | Flow Rates vs Maximum Pressure | |||
---|---|---|---|---|
40 KPSI (2700 bar) | 30 KPSI (2000 bar) | 20 KPSI (1350 bar) | 15 KPSI (1000 bar) | |
0.75 KW | 40ml / min | 55ml / min | 80ml / min | 115ml / min |
1.1 KW | 100ml / min | 120ml / min | 180ml / min | 255ml / min |
- Incorporates our unique disruption head, precise hydraulic operating and control system with an automatically supplied, continuous flowing Cell Disrupter
- Disruption pressure easily and accurately set and displayed digitally with a range of 1KPSI through to 40KPSI as standard
- Touch screen control of disruption cycle, automatic shut down when process complete
- Cell Disrupter controls peristaltic process pump for automatic supply of sample. Process pump available on request
- Disruption head mounted in stainless steel tray to avoid spillage
- Partial containment and simple externally controlled CIP
- Internal relief valve fitted for reverse flow of cleaning fluids
- Various flow rates are available depending on desired maximum pressure and power rating, alternative pressure heads available on request
- Pressure consistent and stable during disruption cycle
- Full bio-containment inlet and outlet options available upon request
- Materials in contact with sample, 316L stainless steel or equivalent, synthetic sapphire, EPDM, GLFPTFE & PEEK 450G
- IQ/OQ available on request
Temperature Control : Disruption head is surrounded by unique cooling jacket. Bath circulator or chiller is recommended.
