It is used for sterilization under saturated steam pressure at any selected point between 5 to 20 PSI These are double walled units with inner chamber (Boiler) made of 16 S.W.G. Fitted with silicone rubber gasket, all systems are hydraulically tested up to 40 PSI. as a safety measure. All autoclaves are fitted with standard accessories such as low water level cut off pressure gauge. stem release cock, spring loaded valve and heating element. Supplied Complete with cord and plug to work on 230 volts A.C. Supply. Micro processor PID controller with timer. Inner & outer chamber complete Stainless steel.

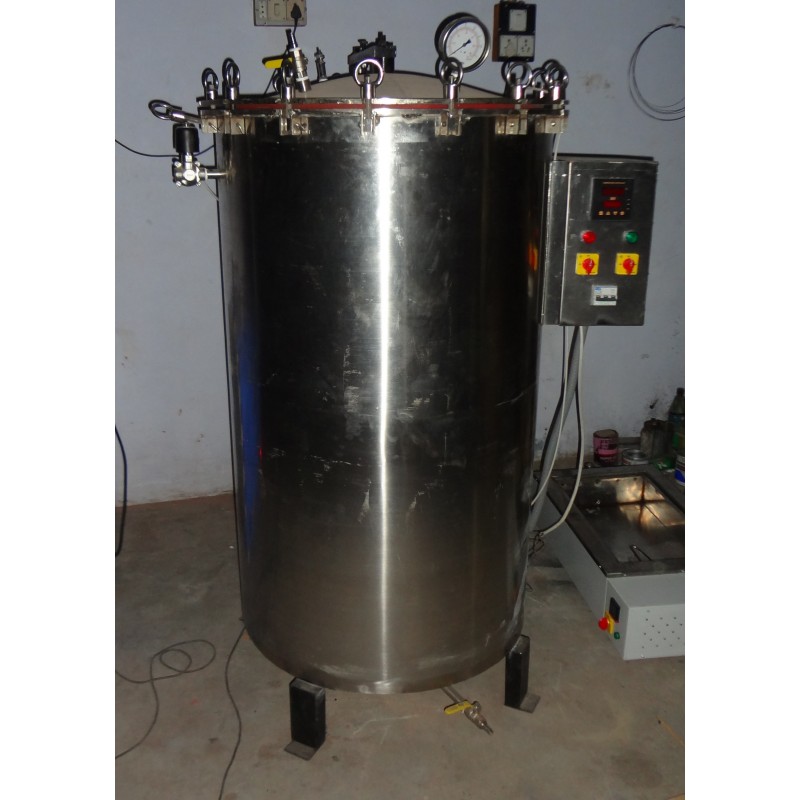

VERTICAL (DOUBLE WALL)
Construction
Double wall design has single chamber for steam and water.
Inner chamber is of 2 mm thickness and is made of stainless steel; outer cover is also made of stainless steel. Lid and flange are made of thick stainless steel.
Features:
- Temperature range 121°C to 125°C
- Temperature resolution 0.1°C
- Temperature accuracy +0.5 °C
- Temperature sensor
- PT100 RTD type Class ‘A’
- Temperature Control
- Low Water Level Alarm
- Microprocessor based PLC digital display.
- Temperature Display
- LED back lit display
- Pressure range
- 15 to 22 PSI, factory set at 15 PSI.
- Pressure display
- Dial gauge
- Pressure resolution
- PSI
- Electrical
- 230V / 15A / 50 Hz.
- Calibration
- Temperature controller calibration with traceability.
DIAX HEIGHT | Ltr. | LOAD |
1. 30 cm x 50 cm | 40 | 2KW |
2. 35 cm x 55 cm | 52 | 3KW |
3. 40 cm x 60 cm | 80 | 4KW |
4. 45 cm x 60 cm | 98 | 4KW |
5. 45 cm x 75 cm | 120 | 5KW |
6. 55 cm x 75 cm | 152 | 6KW |
7. 55 cm x 90 cm | 200 | 6KW |
