Zero Hold up Filter Press is used for achieving clear filtration quality for high value liquids. Meeting GMP & FDA norms, these filter presses can be made available with support of different pumps like Centrifugal, Gear, Lobe and Roto as per the specific process application demands. Further, the cartridge assembly comprises perforated screens, plates, spacers as well as fitter media to provide for optimum process support.
Special Features:
§ Comes with interlocking spacers
§ Unfiltered liquid centrally fed under pressure through bottom inlet that allows liquid to evenly spread on each plate that comes fitted with filter media
§ Meets GMP & FDA norms Provides full batch recovery where no separate scavenging system is required.
§ Provides full batch recovery where no separate scavenging system is required
§ Provides for optimum sealing support that allows filtration of volatile, toxic as well as inflammable products
§ Can be used with any type of filtering media including as single or in combination to achieve required micron efficiency
Applications:
§ Chemical industry
§ Pharmaceutical industry
§ Food industry
Technical Specification:
Model
Diameter of Plate
No. of Plates
Filtering Area m2
Cake Holding Capacity (Litres)
Capacity
(Litres/hour)
LI-SP86
8”
6
0.198
4.50
400
LI-SP88
8”
8
0.254
5.78
500
LI-SP148
14”
8
0.756
27.00
1500
LI-SP1410
14”
10
0.924
35.00
1800
LI-SP188
18”D
8
1.270
51.00
2500
LI-SP1815
18”S
15
2.270
44.00
4500
LI-SP1812
18”D
12
1.840
78.00
3700
LI-SP1823
18”S
23
3.400
65.00
6800
LI-SP2412
24”D
12
3.430
148.00
6700
LI-SP2423
24”S
23
6.336
120.00
12600
LI-SP337
33”D
7
4.000
175.00
8000
LI-SP3314
33”S
14
7.500
210.00
15000

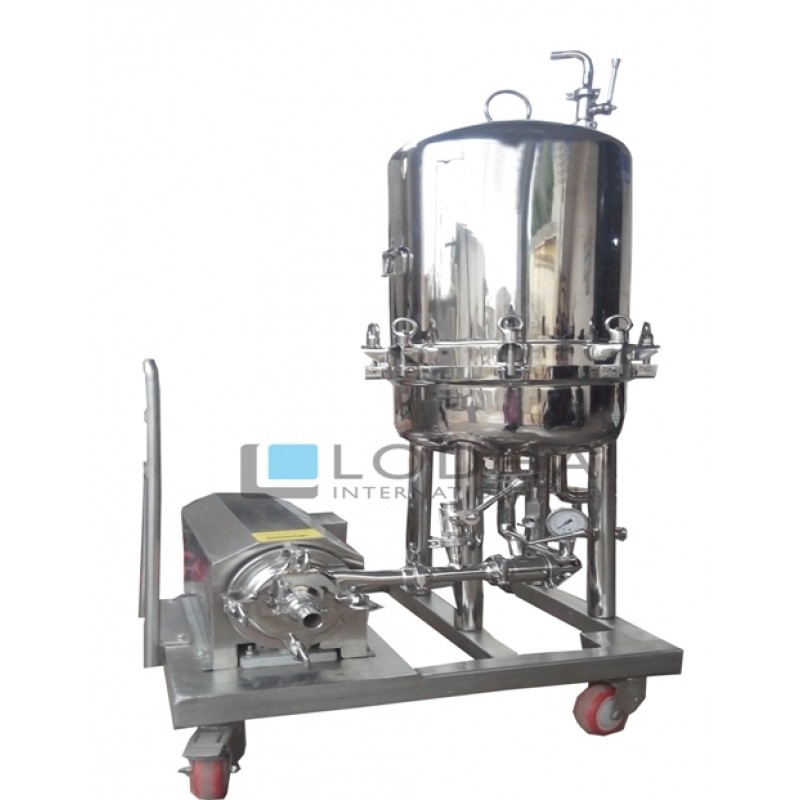

Zero Hold Up Filter Press
- Views: 1011
- Vendor Type: Manufacturer, Exporter
- Product Code: LI-SP
- Availability: In Stock
- ₹98,000
