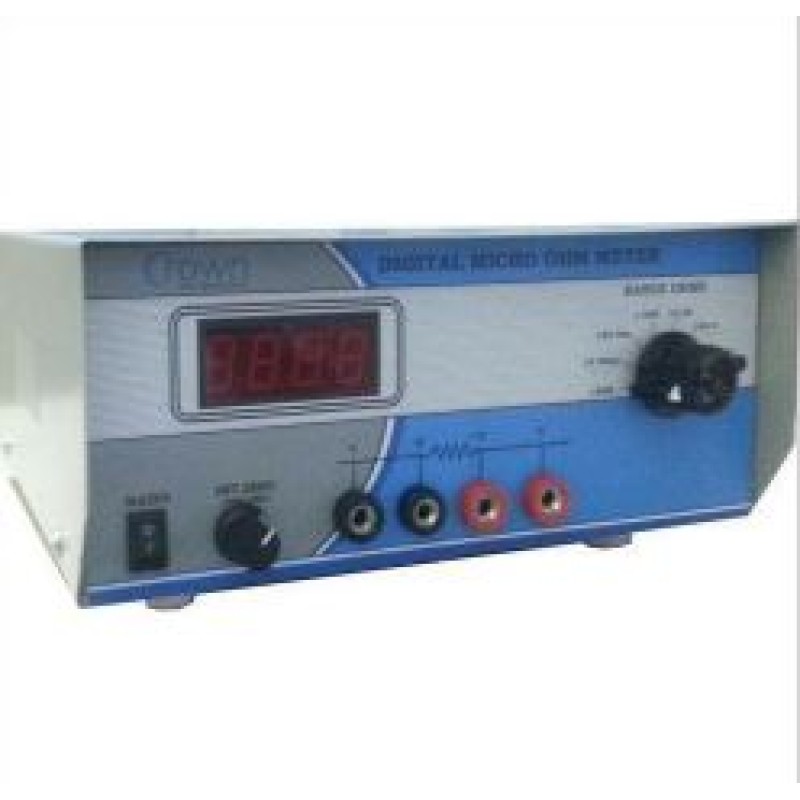

53 C Digital Micro Ohm Meter
Product Description :
Digital Micro Ohm Meter - 53 C
“CROWN” made DIGITAL MICRO OHM METER is a compact high reliability 3 1/2 digit instrument suitable for measurement of resistivity of copper wires from 70 SWG to 50 SWG resistance of cables , windings , coils , heater elements 8“ contact resistance of switches , relays etc. Emphasis in the I design of this instrument has been to provide quick , stable repeatable readings of resistance . The instrument uses 4 terminal measurement so that resistance of test leads contacts in eliminated from test results .Actual value of resistor is directly displayed on seven segment 12.5mm display
SPECIFICATION :
RANGE OF MEASUREMENT : 1 micro ohm to 19.99 K Ohm in eight ranges
Range | Nominal Test Current | Accuracy |
0 - 1999 µ Ohm | 1.50 A | + 0.3% + 2 Digits |
0 -19.99 m Ohm | 0.75 A | + 0.2% + 2 Digits |
0 - 199.9 m Ohm | 0.75 A | + 0.2% + 2 Digits |
0 - 1.999 Ohm | 75 mA | + 0.2% + 2 Digits |
0 -19.99 Ohm | 7.5 mA | + 0.2% + 2 Digits |
0 - 199.9 Ohm | 0.75 mA | + 0.2% + 2 Digits |
0 - 1999 Ohm | 0.075 mA | + 0.2% + 2 Digits |
0 - 19.99 K Ohm | 0.075 mA | + 0.2% + 2 Digits |
Product Details:
Display | 3.5 digit seven segment |
Brand | Crown |
Model | Ces 53c |
Warmup time for rated accuracy | 3 min. |
Range of measurement | 1 micro ohm to 19.99 k ohm in eight ranges |
Over range | Three most significant digit blank & 1 appears |
Input voltage | 230v ac +/- 10% 10w approx. |
53 C Digital Micro Ohm Meter
- Views: 177
-
Crown Electronic Systems - Product Code: CES-53C
- Availability: In Stock
- ₹0
Seller information
Crown Electronic Systems
- Crown Electronic Systems
- http://www.crownelectronicsystems.net/
- New Delhi, India
- Business Type :Supplier, Manufacturer
