Capillary Flow Porometers:

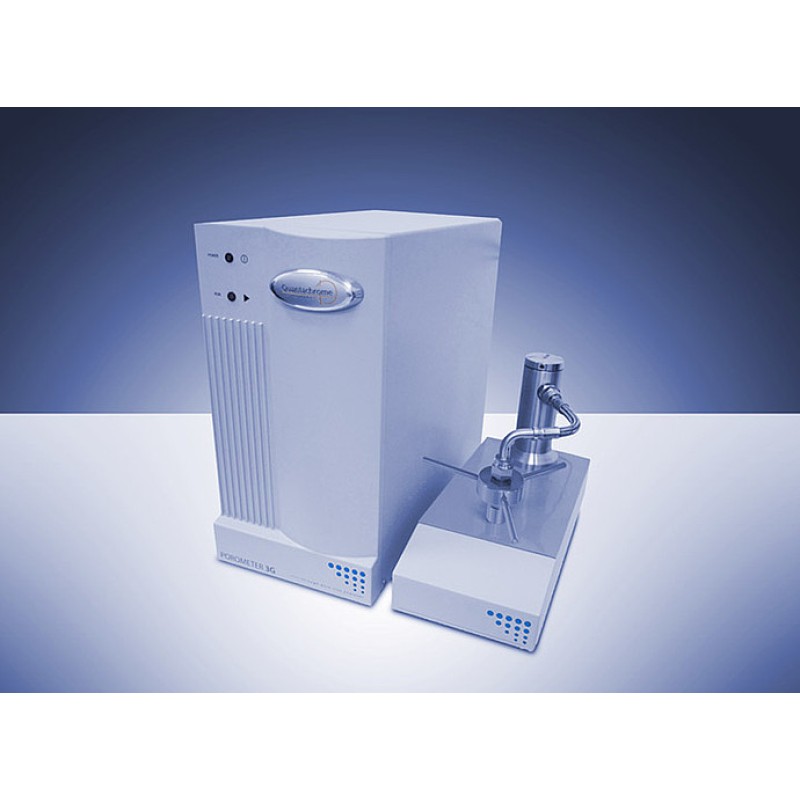

Porometer-3G
Get the most easy-to-use capillary flow porometer available
The Porometer 3G series of capillary flow porometers delivers accurate and repeatable through- pore size distribution results, typically within only 30 minutes for any sample. As these units do not require the constant calibration of the pressure gradient within the flow path, they make the process of multi-instrument alignment much simpler. Sample throughput is greatly increased by their simplified operation and measurement speed. Three distinct models are available to fit the specific air permeability and pore size characteristics of a wide range of membranes and filtration media.
Technical specifications :
3G micro | 3G z | 3G zH | |
---|---|---|---|
Pore size minimum | 0.07 µm | <0.03 µm | <0.02 µm |
Pore size maximum | 100 µm | 500 µm | 500 µm |
Pressure controllers | 1 | 2 | 2 |
Controller #1 | 0 psi to 100 psi | 0 psi to 30 psi | 0 psi to 30 psi |
Controller #2 | n/a | 0 psi to 300 psi | 0 psi to 500 psi |
Pressure sensors | 2 | 3 | 3 |
Sensor #1 | 0 psi to 5 psi | ||
Sensor #2 | 0 psi to 100 psi | ||
Sensor #3 | n/a | 0 psi to 250 psi | 0 psi to 500 psi |
Flow sensors | 1 | 1 or 2 | 2 |
Sensor #1 | 0 L/min to 100 L/min | 0 L/min to 100 L/min (standard) 0 L/min to 200 L/min (optional) | 0 L/min to 10 L/min |
Sensor #2 (optional) | n/a | 0 L/min to 5 L/min or 0 L/min to 10 L/min | 0 L/min to 200 L/min |
Flow sensor switching | n/a | manual | auto |
Pressure sensing accuracy | ±0.05 % f.s. | ||
Pressure resolution | 16 bit A/D equivalent | ||
Flow sensor type | Precision thermal mass flow | ||
Flow sensor settling time | <2 seconds | ||
Flow sensor temperature coefficient | <0.05 %/oC (15 °C to 45 °C) | ||
General specifications | |||
Electrical properties | 90 V to 240 V AC, 50/60 Hz | ||
Main control unit dimensions (H x D x W) | 40 cm x 45 cm x 19 cm (15.8 in x 17.8 in x 19 in) | ||
Sample holder block dimensions (H x D x W) | 24 cm x 32 cm x 15 cm (9.5 in x 12.6 in x 6 in) | ||
This table shows standard configurations. Different pressure and flow rate ranges are available for some models. |
