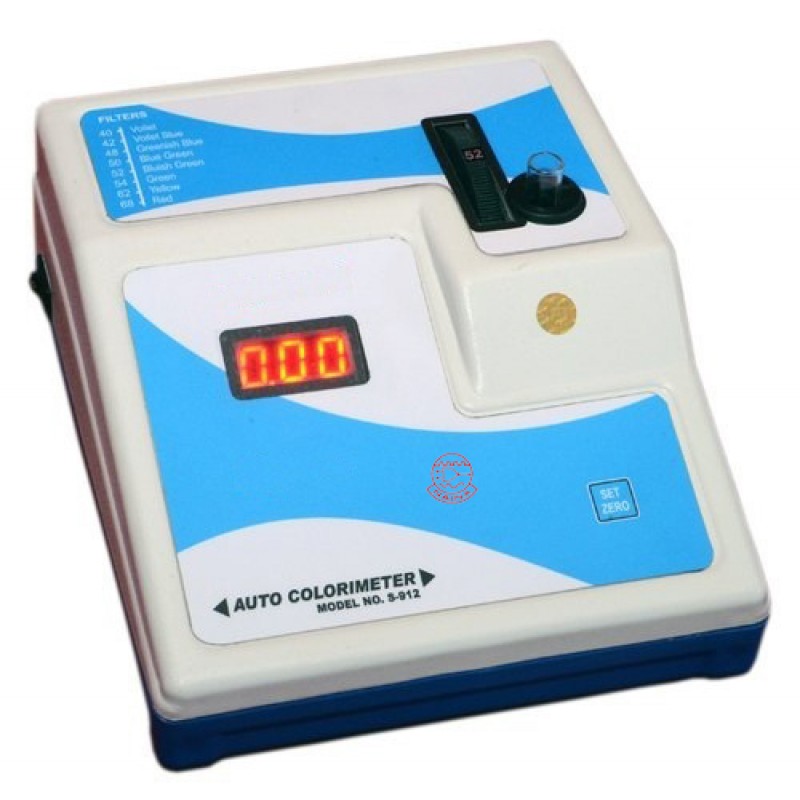

AUTO COLORIMETER NCM509
Product Details :
Colorimeter are the finest colorimeters that combine convenience in operation with high precision & accuracy of Absorbance analysis. They use the latest microcontroller technology to give results in the form of Abs. High standard glass filters covering 400-700 nm are mounted on a rotating disc. Highly sensitive photo sensor and use of latest IC technology makes the instruments highly rugged. A minimum sample volume of 1 ml is used. In-built shutter increases the life of the photocell. It is extremely useful for blood chemistry in chemical /clinical labs, pharmaceutical industries, medicine plants, water treatment plants, agricultural universities etc.
Features :
- Using Latest Microcontroller
- 1ml sample volume
- Range from 400 to 700nm
- Auto Zero Facility
- Highly Stable & Accurate
- Provision for Battery operation also Available
Product Details:
Parameter | OD( Optical Density) |
Wave length range | 400nm – 700nm (8 Glass Fitter) |
Peak wavelength | 400, 420, 480, 500, 520, 540, 620, 680 nm |
Range | 0 to 2.00 |
Accuracy | ± 0.02 ±1 digit |
Resolution | 0.01 |
Path length | 10mm |
Calibration | Manual by soft touch key |
Sample System | 1.0 ml |
Test tube | 10mm |
Display | LED |
Light source | LED lamp ( 3.5V, 100mA) |
Zero Setting | By soft Touch Key |
Detector | Silicon Photodiode |
Power Supply | 230 V ±10%, 50 Hz AC. |
Battery Backup Facility | 12V DC(Optional at extra cost) |
Dimensions (L x B x H) & Waight | 195 x 230 x 95 mm. Weight: 3 kgs |
Operating Temperature | 10°C –45°C |
Accessories | Test tube, Dust Cover, Instruction manual , etc. |
