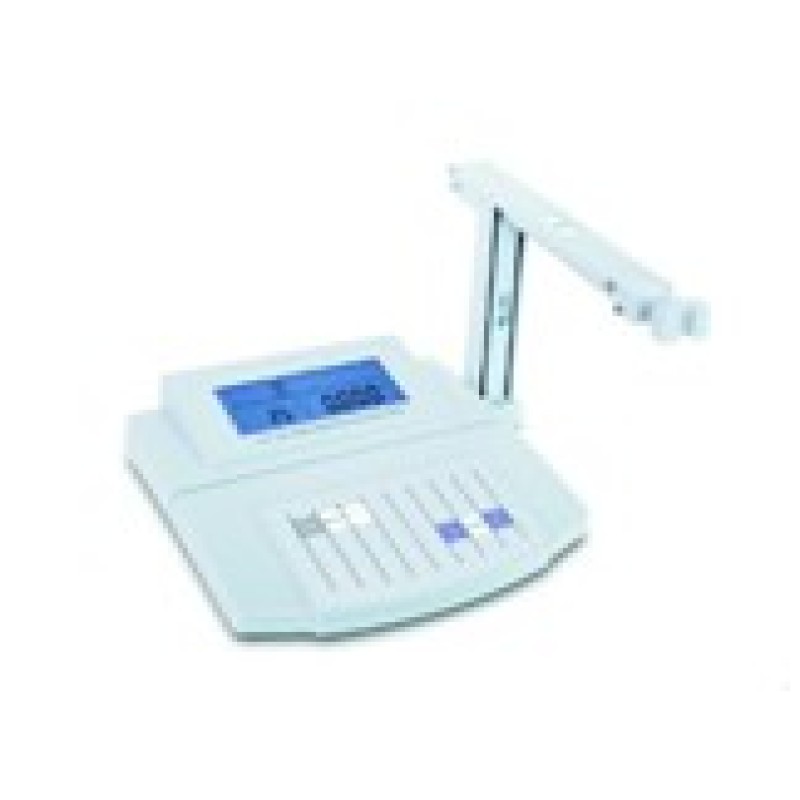

Conductivity meter Microprocessor
Product Details :
Conductivity meters includes measurement of conductivity temperature in liquids
AUTOMATIC CALIBRATION The meter is capable of calibrating up to 5 points using standard solution. From Setup Menu, choose CAL (Calibration) and press key to set known conductivity value, immerse conductivity electrode into calibration solution, press ENTER key and meter is automatically calibrated.
CONDUCTIVITY AUTO-RANGING We have auto-range function for measuring conductivity. Upon immersing conductivity sensor into sample solution, the screen immediately displays the value in appropriate measurement range for accuracy.
AUTOMATIC TEMPERATURE COMPENSATION Using the supplied temperature probe, the temperature value is displayed on the screen. The meter automatically compensates for optimum accuracy under variable temperature conditions.
ADJUSTABLE TEMPERATURE COEFFICIENT AND CELL CONSTANT Various Ions may have different temperature coefficients. The meters can set the temperature coefficient between 0 and 3.9% in degrees centigrade for optimum accuracy, set three cell constants (O.1, 1 and 10) for measuring requirements
Model | DWCM-M |
Conductivity Range | 0.00 to 1.999,19.99,199.9,1999 ?s, 19.99, 200.0 ms |
Conductivity Accuracy | ±1% F.S |
Temperature Range | 0 to100?C |
Temperature Range | 0 to100?C |
Temperature Accuracy | +1?C |
Temperature Coefficient | 0 to 3.9% per °C |
Calibration Points | 1 point per range |
Calibration Solution | 10 to 17?S, 100 to 170?s, 1000 to 1700?S, 10 to 17 mS |
Cell Constant | 0.1, 1.0, 10 adjustable |
Temperature Compensation | 0 to 50°C, Manual or Automatic |
Power Supply | DC 9V, using AC Adapter 220VAC, 50Hz |
Weight | 1.8 kg |
