Features :
- Single Channel
- Stainless steel round burner
- Concentric Non-Corrosive
- Nebulizer
- Narrow Band interference Filters
SPECIFICATION:

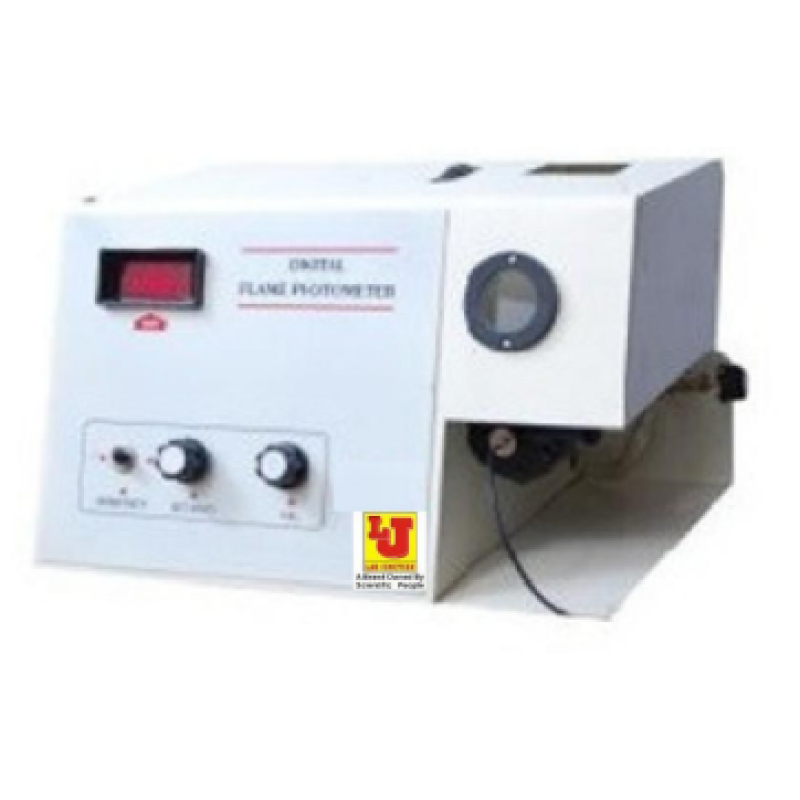

Rugged & accurate Instrument to determine concentration of na, k, ca & li in any solution ideal instrument for clinical laboratories & soil testing labs
RANGE | Na : 0-100 ppm, K : 0-100 ppm, Ca :
15-100 ppm (Optional) Li : 10-100 ppm (Optional) |
SENSITIVITY | Sodium (Na) : 5 ppm, Potassium (K)
: 5 ppm, Calcium (Ca) : 10 ppm (Optional),
Lithium (Li) : 10 ppm (Optional) |
READOUT | 21/2 digit bright red LED duel
display |
ACCURACY | ±2% upto 40ppm ±5%above |
IGNITION SYSTEM | With external igniter |
MEASUREMENT SYSTEM | Measures One element at a time |
REPETABILITY | ± 2 Counts |
DETECTOR | Silicon Photodiode |
FILTERS | Narrow band interference glass
filters |
NEBULIZER | Black bakelite, axial flow type |
FLAME SYSTEM | LPG and dry oil free air |
WARM UP TIME | 10 minutes |
POWER | 230 V± 10?,50HZ |
DIMENSIONS | 355W X 255H X 225mm (Approx.) |
WEIGHT | 5 Kg. (Approx.) |
COMPRESSOR UNIT | |
AIR SUPPLY | By oil free mini compressor unit
with pressure regulator |
COMBUSTION GAS | LPG controlled by precision
regulator |
POWER | 230V± 10°/0,50Hz |
DIMENSION & WEIGHT | L280mm X W255mm x H180mm 6 Kg.
(Approx) |
ACCESSORIES | instrument with Na & K
Filters *Sample Holders *Instruction Manual, Air Tubing along with End
Clamps *Chimney *Capability Tubes |
