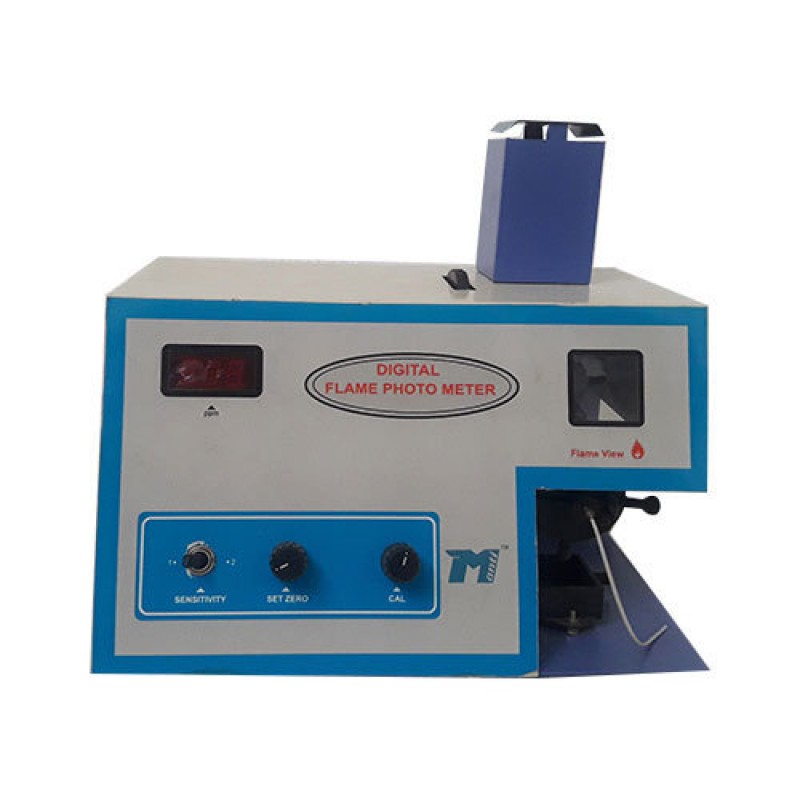

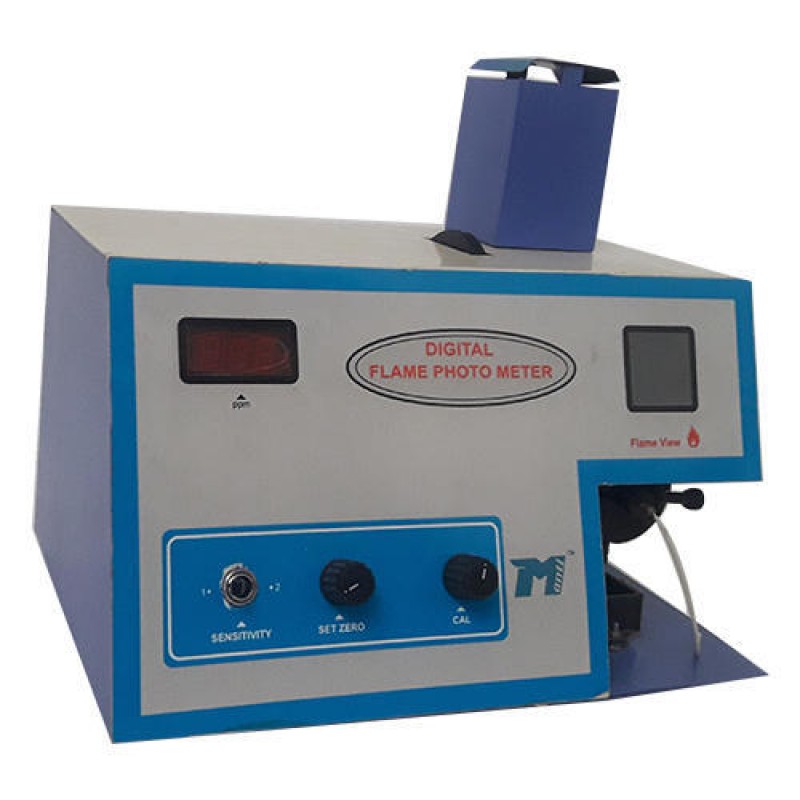

Digital Flame Photometer - Single Display
Product Details :
Model | MT-126 |
Application | Laboratory Use |
Automation Grade | Automatic |
Brand | MANTI |
Digital Flame Photometer is a simple easy to operate instrument for determination of Sodium, Potassium, Calcium Lithium. It is an ideal instrument for Soil testing labs. Digital Clinical Flame Photometer is a Dual Channel Flame Photometer used for simultaneous observation of Sodium, Potassium in blood sem (plasma), Urine other type of biological fluids.
The instruments are supplied in two units viz. Main Unit and Compressor Unit. The Main Unit comprises of digital displays, detector, filters and nebulizer. The compressor unit supplies the compressed air to the Main Unit
Features :
- Simple Easy to Operate
- Narrow Band Interference Filters
- Accurate Na, K, Ca, Li Determination
- Mixing Chamber Designed For Stable Flame
- Concentric Non-Corrosive Nebulizer
- Auto Ignition
Specifications :
Model | MT-126 | ||
Serum | Urine | ||
Range | Na: 0 - 100 ppm K : 0 - 100 ppm Ca: 15 - 100 ppm (Optional) Li: 10 - 100 ppm (Optional) | Na: 0 - 200 meq/l K : 0 - 10 meq/l - Li: 0 - 2 meq/l (Optional) | Na: 0 - 200 meq/l K : 0 - 100 meq/l (Optional) Ca: 0 - 10 meq/l - |
Sensitivity | Na: 5 ppm K : 5 ppm Ca: 10 ppm (Optional) Li: 10 ppm (Optional) | - | |
Accuracy | 2% upto 40 ppm, 5% above 40 ppm | 2% upto 100 meq 5% above 100 meq | |
Measurement System | One element at a time | Two elements at a Time | |
Readout | 2½ Digit 7-Segment LED | Dual 2½ Digit, 7-Segment LED | |
Ignition System | In-built electronic Ignition by press of switch | ||
Repeatability | 2 Counts | ||
Detector | Silicon Photodiode | ||
Filters | Narrow band interference glass filters | ||
Nebulizer | Black backelite, axial flow type | ||
Flame System | LPG dry oil free air | ||
Warm-Up Time | 10 minutes | ||
Power | 230 V 10% AC, 50 Hz | ||
Dimensions | 375 x 245 x 220 mm (L x B x H) (Approx.) | ||
Weight | 7.5 Kg (Approx.) | ||
COMPRESSOR UNIT | |||
Air Supply | By oil free mini compressor unit with pressure regulator | ||
Combustion Gas | LPG controlled by precision regulator | ||
Power | 230 V 10% AC, 50 Hz | ||
Dimensions | 290 x 255 x 210 mm (L x B x H) (Approx.) | ||
Weight | 8 Kg (Approx.) |
Note : Specifications are subject to change due to continuous improvements.
Additional Information :
- Item Code: MT-126
