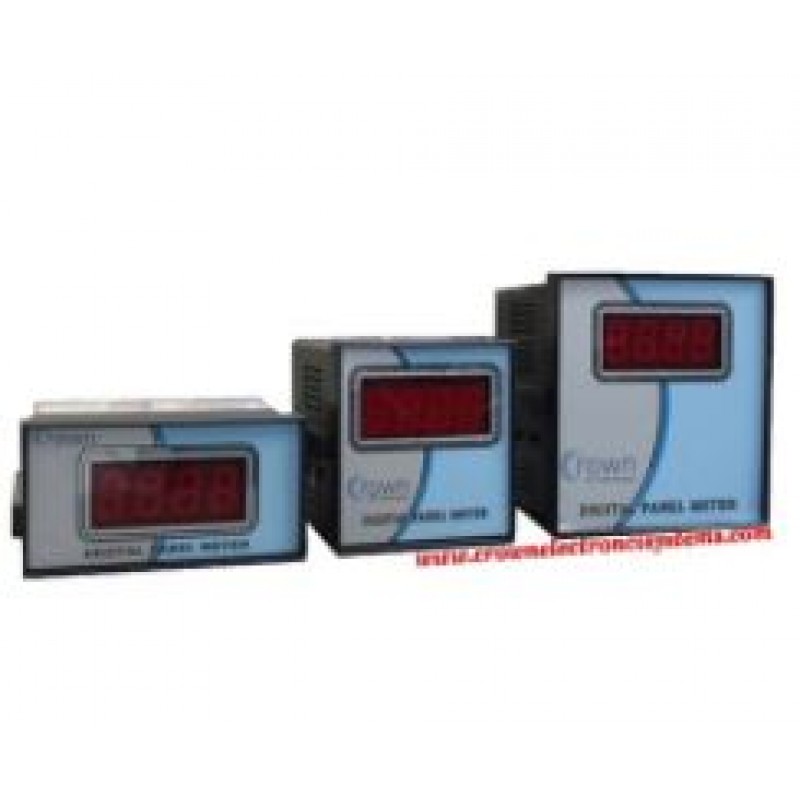

Digital Panel Meter
Product Description :
With an experienced technical team, we are successfully engaged in manufacturing and exporter Digital Panel Meter. The offered meter is extensively used for taking the measurement of pressure, voltage, current and temperature. This valve is designed at our advanced production unit by the skilled experts using superior quality of materials as per the industry laid quality standards set by the industry. The Digital Panel Meter is available for our clients at a feasible price.
Features of Digital Panel Meter:
- Compact design
- Operational accuracy
- Long service life
Product Details :
Display | 3 1/2 Digit LED 12.5mm High |
Brand | CROWN |
Model | CES 204 |
Resolution | 1 in 1999 Count |
OPERATING VOLTAGE | 230V AC +/- 10% OR 110 V +/- 10% AC / 12V DC For DC Range (Optional) |
Basic Accuracy | +/-0.1% +/-1 Digit |
Technical Specification :
DC Voltage | 0 To ± 199.9mV or ± 1.999V or ± 19.99V or ± 199.9V or ± 1000V |
AC Voltage | 0 To 199.9mV or 1.999V or 19.99V or 199.9V or 750V |
DC Current | 0 To ± 199.9μA or ± 1.999mA or ± 19.99mA or ± 199.9mA or, ± 1.999A or ± 19.99A |
AC Current | |
0 To 199.9μA or 1.999mA or 19.99mA or 199.9mA or 1.999A or | |
Panel Cut Out | 92mm (H) X 92mm (W) X 65mm (D) |
46mm (H) X 92mm (W) X 65mm (D) | |
72mm (H) X 72mm (W) X 65mm (D) |
