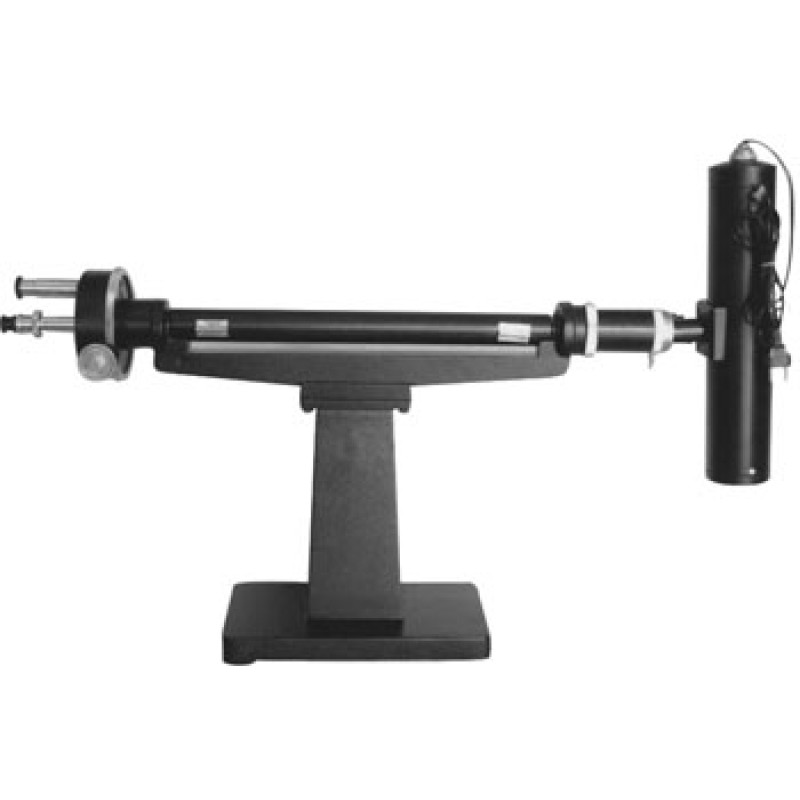

Research Polarimeter
Smart Choice for Pharmaceutical & Laboratory Examinations.
Most modern design ensuring very accurate results and accepts observation tubes upto 400mm length. Equipment with latest Imported optical system, the equipment is highly recommended for all types of research work in institutions, Laboratories and sugar industries.
The overall improvements in its optical design with rotating half shadow system at the front circle of the instrument ensure permanent and undisturbed focus, which maintain a clear definition, even when different types of specimens are examined including dense liquids. This system also provides indication about the direction of rotation of the material being examined.
Specifications:
Range Of Measurement | Its highly accurate glass scale is divided to read angular degrees and also carries a sugar scale in I.S.S. Units. The angular scale from 0o to 360o sub divided to degree I.S.S. units, the sugar scale from 30o to 120o I.S.S. units enable direct reading to 0.1 and by examination to 0.05 sugar degrees. |
Half Shade | Improved rotating half shade system suitable on sodium Light. |
Suitability | For 400mm Tube |
Packaging Contents | Adjustable Tripod Stand Three glass tubes (100mm, 200mm, 400mm) STYROFOAM molded box or plywood cabinet |
Accessories (Optional) | Spare Polarimeter Tube 100mm, 200mm, 400mm. Sodium lamp With power supply |
