CONTINUOUS RAIL THERMOMETER

Product Details:

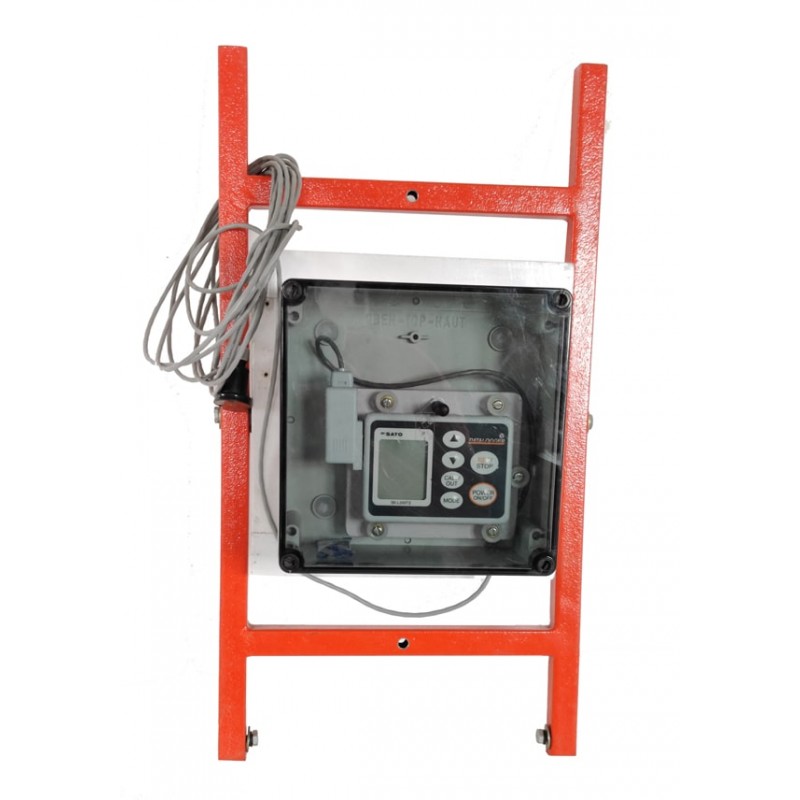

‘PIE’ Brand Continuous Rail Thermometer Model CRT-1, generally confirming to RDSO specification but improved. The Thermometer records rail temperature for up to 9 months on an hourly basis.

It consists of the following: –

1.Recorder with enclosure  01 No.

2.Sensor with 16 ft. cable  01 No

.3. Software (Window based) with computer cable  01 No.

4. Mounting kits (Tools used for deploying CRT-1)  01 No.

5.Instruction manual (English)  01 No.

6.Carrying case to keep all of the above items 01 No.

Technical Specification: –

Measuring Range                                                     :  0 to 85°C.

Measuring Accuracy                                                 :  + 1°C.

Resolution                                                                 : 0.1ºC

Memory: 9 months (Non Volatile memory record Rail temperature).

Input/Backup: CRT-1 operates on inexpensive Two AA batteries, which runs it for 12 months also gives backup as such no separate backup battery is required or connection to AC source.

Software System Requirements: –

Windows 2000 or higher, pcb having USB port.

Battery Level indication      : Yes, Displayed at launch.

Recorder enclosure             : Dust & Water resistant (IP66).

Features: –

• Records rail temperature for up to 9 months on an hourly basis.
• Computer compatible recorder does away with changing charts/ink ass in strip chart recorders.
• Provided software generates charts, gives maximum/minimum temperature and helps analyses results faster.
