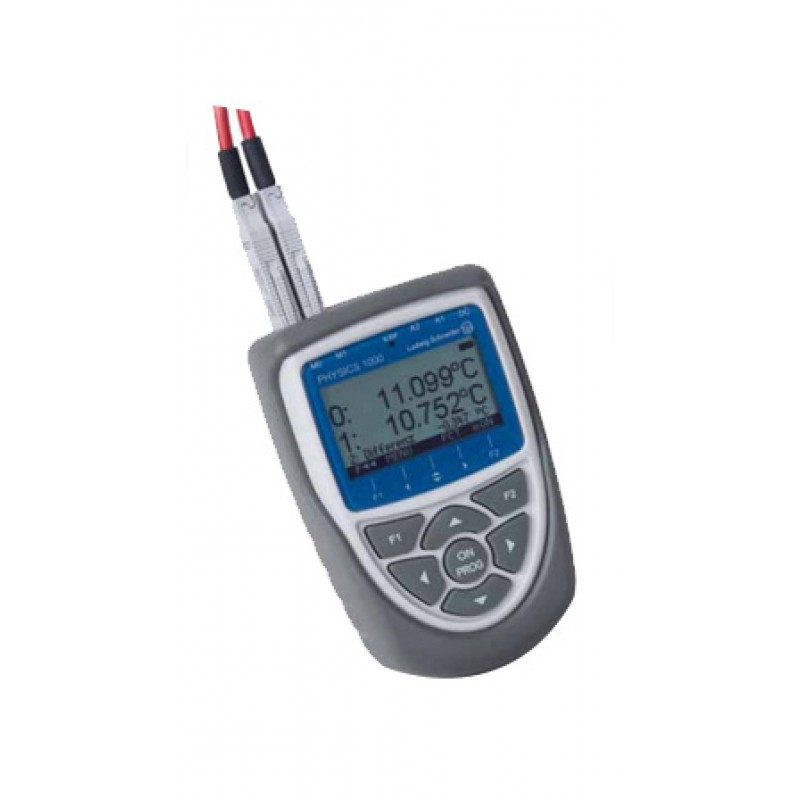

DIGITAL PRECISION THERMOMETERS
Product Details :
Digital Measuring device for thermocouples, NTC resistance thermometers, infraed temperature probes, capactivie humidity probes. Digital measuring device for precise measurments with a wide range of measuring units and sensor technologies, e.g. temperature(Pt100,thermocouples,NTC,infrared),air flow,pressure,flow rate, electrical values etc.
Beside the PHYSICS 100-1 type with one input channel was offer also type 100-2 with 2 input channels (both input channels or measuring points can be covered simultaneously.)
Complex digital measuring device with data logger function for precise measurments with a wide range of measuring units and sensor technologies, e.g. temperature (Pt100, thermocouples, NTC, infraed), air humidity, air flow, pressure, flow rate, electrical values etc.
| Technical Data PHYSICS 51 | |
|---|---|
| Sensors: | thermocouples, humidity, NTC |
| Measuring input: | 1 input channel |
| Measuring range: | see sensor list |
| Galvanic isolation: | Semiconductor relais (50 V) |
| Channels: | 4 function channels e.g. for dual probes |
| AD coverter: | Delta-Sigma 15bit, 2.5 M/s |
| Resolution: | max.0.01k |
| Output: | 2 output channels |
| Display graphic: | 2 lines,statical 7/16 segments |
| Display illumination: | 2 LEDs,white |
| Keyboard: | 7 silicon keys |
| Batteries: | 3 Mignon Alkaline |
| Casing: | ABS (max.70 c), light gray |
| Degree of protection: | IP54 |
| Dimensions and weight: | L 127xW 83xH 42mm, 290g |
| Ref-No: | 59235 |
FEATURES
- Compact shape and ergonomic design
- Measuring functions: measuring value, zero-setting, max-/min. value documentation, 2-step adjustment, scaling (optional: multi-point calibration for temperature values)
- Test functions: segment monitoring, range monitoring, sensor error check, battery check.
- Interfaces: USB, RS232, Ethemet, Bluetooth, analog
- Language Selection: German, English, French<
