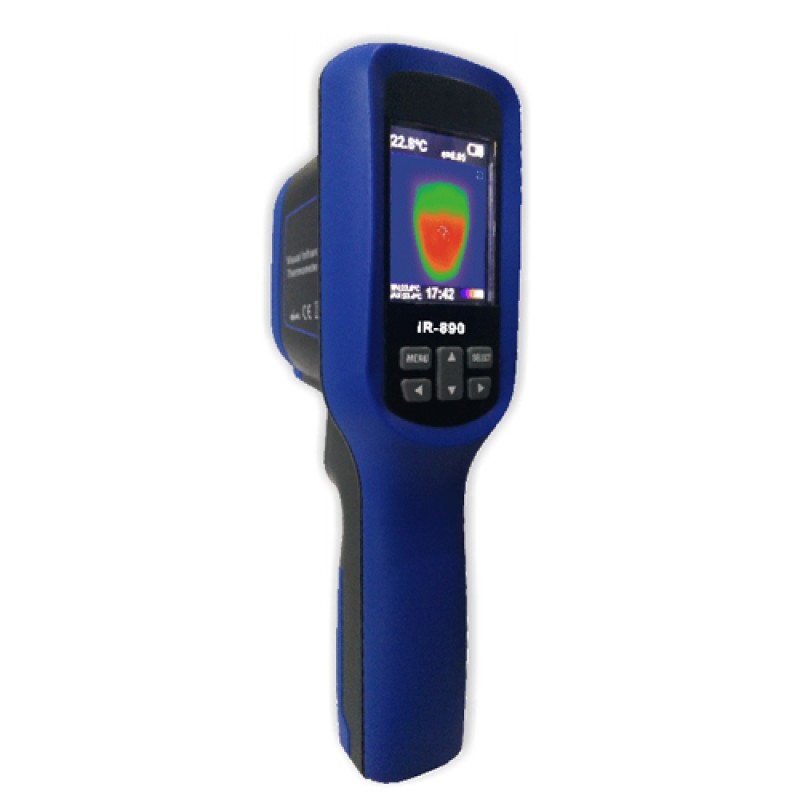

VISUAL INFRARED THERMOMETER - RT-890
DESCRIPTION
Image Blending makes it easier to understand infrared heat maps through the use of an aligned visible image and infrared heat map. The product captures a visible image with each infrared heat map to exactly show the target area and more effectively share it with others.
To use the blending function, press UP/DOWN button to adjust the blending from 0% to 100%. The blend options are shown in above mention figure.
FEATURES
- 2.5 color LCD display
- Selectable color palettes
- Visual/heat map image alignment
- LED light allows the unit to be used in poor light
- Image capture and storage
- Units/time/date set
- Auto power off
SPECIFICATIONS :
Model | IR-890 | |||
Display | 2.5 color lcd display | Color palette | Iron color, Rainbow, Black and White | |
RT solution | 60×60 (3600 pixels) | |||
Visible light image resolution | 300,000 pixels | |||
Field of view | 20°×20° | Image storage | Micro SD card | |
Minimum Focus | 0.5m | File format bmp | ||
Thermal sensitivity | 0.15ºC | Battery life 6H | ||
Emissivity | Adjustable 0.1~1.0 | Battery type | 4* 1.5V*AA* size | |
Temperature range | -20º~300ºC/-4º~572ºF | |||
Eccuracy | ±2% or reading±2ºC/3.6ºF | Auto power off | 12 Hours | |
Spectral band | 8-14um | Working Condition | ||
Image frequency | 6HZ | Storage Condition | ||
Focus mode | fixed |
