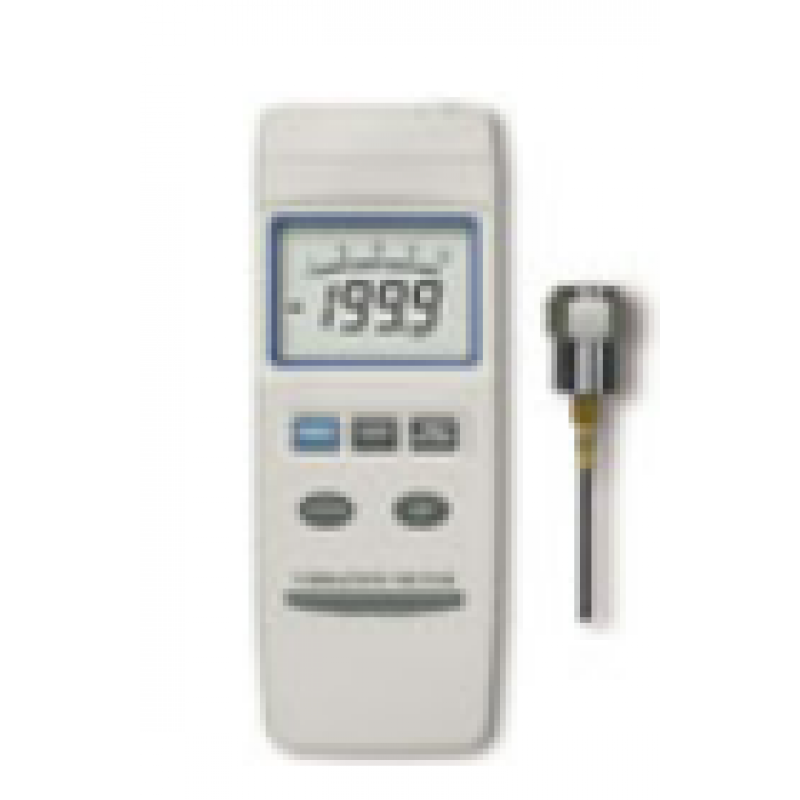

Vibration Meter

Vibration measurement is an integral part of any industrial research and quality control process, where a mere vibration in machines and moving parts puts a larger effect. Therefore, in order to adjust preferred level of vibration, a vibration meter plays a crucial role. Panomex Inc. presents a range of vibration meters to measure level of vibration in variety of machinery. These machinery vibration meters feature easy to use functioning, instant measurement and long years of service life.

We are manufacturer and supplier of vibration meters in India and supply them at fair price. Our series of digital vibration meters measure acceleration, velocity and displacement with utmost accuracy. The measurement can be seen on the LCD display, which is large and features comfortable display, while ensures minimum chance of error. Separate vibration sensor facilitates easy measurement process and attached to the instrument with a cable. These vibration meters come with and without data logger functions and are suitable for engineers, who want to measure vibration level on-site.

Features
Displacement, acceleration and velocity measurements	Acceleration in peak, velocity in rms and displacement in peak-peak at the same time
Innovative sensor design	With and without data logger
Built-in low battery indicator	Auto power off
Readings can be freeze	Metric & Imperial display unit

Specifications
Model	PX-8220	PX-8203
Acceleration	200 m/s^2 : 0.5 to 199.9 m/s^2	0.5 to 199.9 m/s^2 0.05 to 20.39G 2 to 656 ft/s^2
Velocity	200 mm/s : 0.5 to 199.9 mm/s	0.5 to 199.9 mm/s 0.05 to 19.99 cm/s 0.02 to 7.87 inch/s
Displacement	2 mm : 0.005 to 1.999 mm	1.999 mm 0.078 inch
Accuracy	± ( 5 % + 2 d ) reading 160 Hz, 80 Hz	± ( 5 % + 2 d ) reading 160 Hz, 80 Hz
Frequency Range	10 Hz to 1 KHz	10 Hz to 1 KHz
Temperature Compensation	-	0, 1, 2, 10, 30, 60, 600, 1800, 3600 sec
Data output	RS 232 serial output
Accessoreis	Instruction manual Vibration sensor w/ cable Magnetic base Carrying Case
Power Supply	DC 9V battery, 006P
