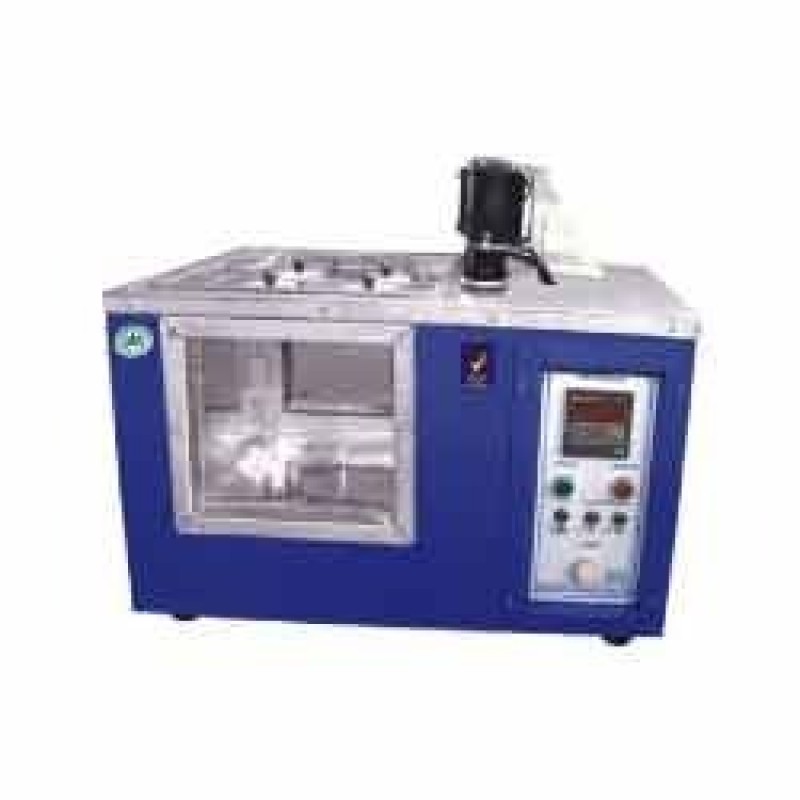

Kinematic Viscometer Bath
Product Details :
We have established ourselves as the top ranked firm engaged in presenting Kinematic Viscometer Bath. Our provided products are developed by professionals employing the best grade component, which is sourced from industry allowed sellers of the market. This product is tested in terms of quality by quality controllers for presenting a defect free range.
Features:
- Precise Constant Temp. Viscosity Bath Useful for estimation of Viscosity of Petroleum & its Product
- Better mineral / Glass wool Insulation to avoid Heat loss during Test
- Silent Circulation Pump / FHP electronic motor of S. Steel shaft for uniform liquid circulation inside the chamber Bath
- Polish 304 grade steel sheet corrosion resistant long life operation
- Kanthal A-1, tubular immersion heater fitted on the top of the Bath for better accuracy
- Two side toughened glass window provided for visibility of object inside the bath
- Bath is having 4/6 Holes for Holding viscometer tube of different sizes
- Full feature with Digital Temp. Controller Cum indicator or Microprocessor Based PID Temp. Controller Cum Indicator.
- Provision for Illumination are provided in the Viscometer Bath
Technical Specifications:
| Model | UTS 1.13 | UTS 1.13 A |
| Capacity (Ltrs.) | 20 | 25 |
| Interior (mm) | 300 x 300 x 225 | 300 x 300 x 300 |
| Heater Wattage "W" | 1 KW x 2 = 2 K W | 1 KW x 2 = 2 K W |
Technical Parameter:
Temperature Range : Ambient to 100°C Temperature Stability : -0.5°C Or Better Housing Material : CRC / Mild Steel duly power Coated Duty Cycle : Continuous Digital Setting : 0.1°C Digital Resolution : 0.1°C Interior : Polish S.S. 304 grade sheet Insulation : Glass/ Mineral wool Power Consumption :220/230V AC -10% 50Hz Optional : All S. Steel body 304 grade instead of MS/ CRC Painted
