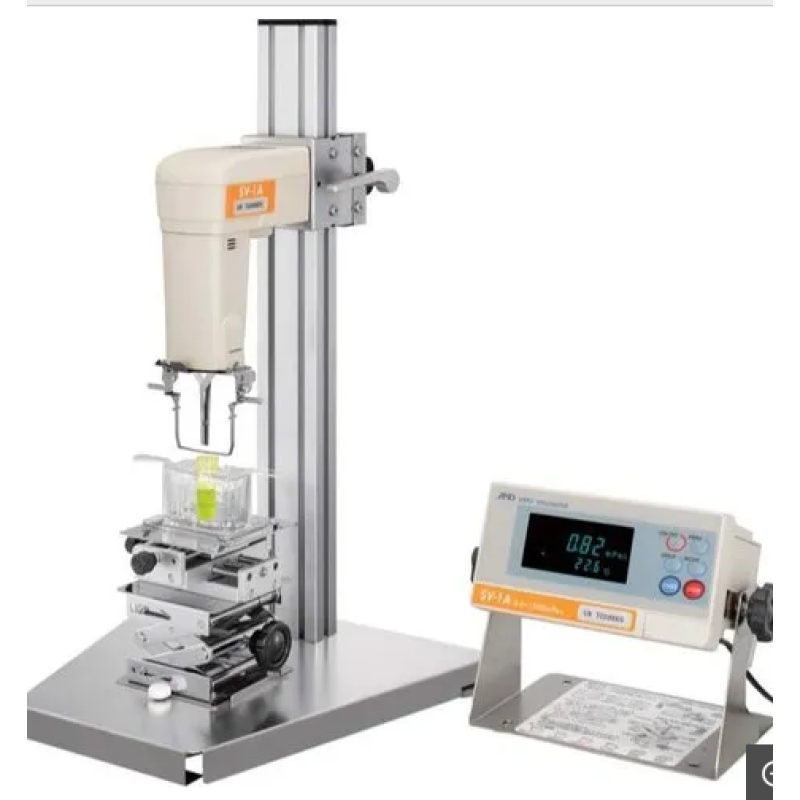

Visco Meter
Product Details:
Model Name/Number | SV-100A |
Brand | AND |
Measurement Method | Tuning Fork Vibration Method (Natural Frequency at 30Hz) |
Viscosity Measurement Range | 0.3~10000mPa.s |
Repeatability | 1% of Reading |
Minimum Sample Amount | 10 ml |
Temperature Measurement | 160 Degree Celsius |
Display | Vacuum Fluorescent Display |
Power Supply | AC Adaptor |
Features |
- 2 ml sample measurement (SV-1A)
- Anti-corrosive, titanium sensor plates and temperature sensor
- X-Y-Z stage for fine position adjustment of the sample cup
- Wide-range, continuous measurement without replacing the sensor plates
- Simultaneous measurements of temperature and viscosity
- Windows Communication Tools WinCT-Viscosity and a serial-USB converter provided as standard
- Easy set up and very quick measurement
- Excellent repeatability (1% of the measured value by standard deviation)
- Extremely high sensitivity (detects a viscosity as low as 0.3 mPa·s)
- Little interference to the sample fluid
- Possible to measure fluids in motion
- Simplified calibration function (for SV-1A and SV-10A)
- Easy cleaning after measurement
|
