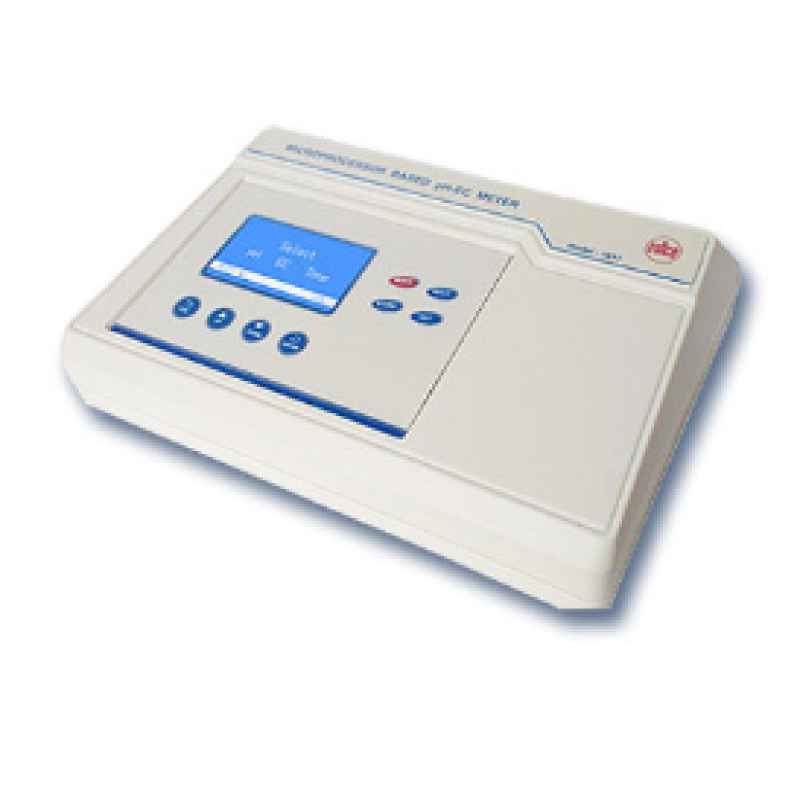

Microprocessor pH-EC Meter
Product Details:

128 x 64 dots Graphical LCD Display
pH, EC & Temperature Measurements
Auto Temperature Compensation
Auto Buffer Recognition in pH Mode
Auto Ranging Facility in EC Mode
Programmable Ref. Temp & Temp. Coeff in EC Mode
1000 Samples Storage Facility
Printer Attachment Facility

Microprocessor Based pH-EC Meter model 1611 is a solid state instrument designed for precise pH, EC and Temperature measurements. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enchanced accuracy and reproducibility. The system has user friendly prompts, which guide you throughout the measurement process.
The instrument has 8 soft touch membrane type keys for ease of operation. It has the storage facility for 1000 samples, which are retained in the memory even when the system is switched Off. Provision has also been made for attachment of any dot matrix/thermal printer with serial RS232 interface so that any of the stored result can be printed.
The instrument is extremely useful for chemical & pharmaceutical industry, agriculture and soil laboratories, swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, breweries, water purification plants etc.
Specifications

PARAMETER	pH	CONDUCTIVIITY	TEMPERATURE
Range Selection	–	Automatic	–
Range	-2.00 to 20.00 pH	0 – 20, 0 – 200 µS, 0 – 2, 0 – 20, 0 – 200 mS	-5 – 110 oC
Accuracy	±0.01 pH, ±1 Digit	±0.5% FS, ±1 Digit	±0.1 °C
Resolution	0.01 pH	0.01 µS	0.1 °C
Auto Buffer Recognition	4.00, 7.00 & 9.20 pH	–	–
Cell constant	–	Adjustable (0.05 – 10.5)	–
Temperature compensation	Auto/Manual (0 – 100°C)	Auto/Manual (0 – 50 °C)	–
Temperature Coefficient	–	Adjustable (0.1 – 4.0%)	–
Display	128 x 64 dots Graphical LCD Display
Key board	8 Keys, Soft Touch Membrane Type
Printer Interface	Through RS 232 for serial printer using Dot Matrix Printer/Thermal Printer
Storage	Upto 1000 Samples
Power	12V DC using 230±10% AC Adaptor
Dimensions (L x B x H)	270 x 202 x 80 (LxBxH)
Weight	0.8 Kg (Approx.)
Accessories	pH Combination Electrode, pH Buffer Tablets (4.00 & 7.00 pH), Conductivity Cell, Temperature Probe, Electrode Stand, 12V Adaptor, Operation Manual and Dust Cover
