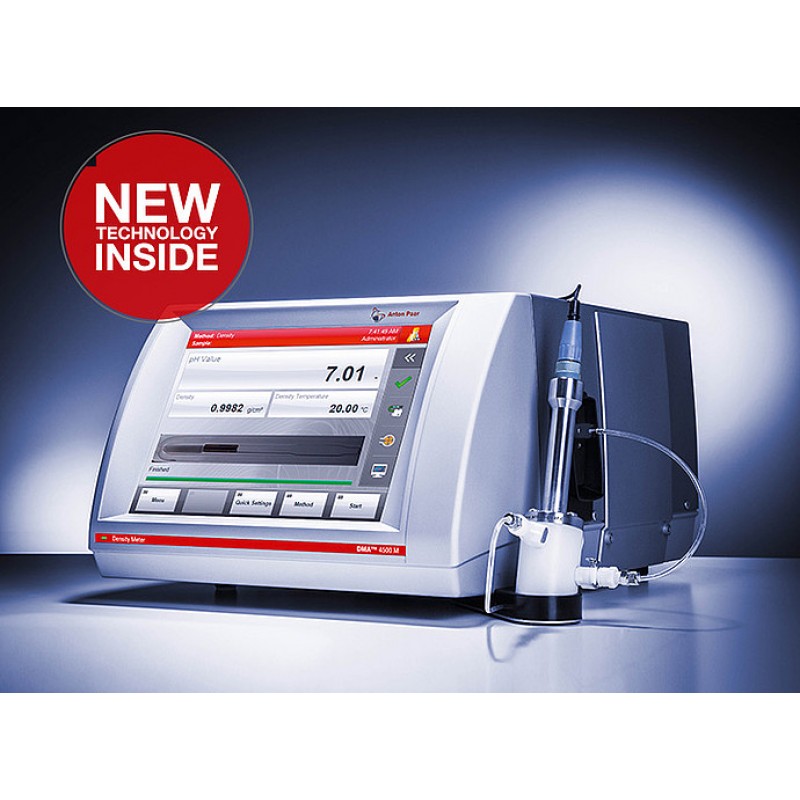

pH Value Measuring Module :
pH ME
- Measuring module for the determination of the pH value of fluids
- Operation via master instrument: DMA M density meter or Alcolyzer M alcohol meter
- Options for beverage analysis and for chemical samples
The pH ME Beverage Measuring Module or pH ME Measuring Module add a further measuring parameter to your DMA M density meters – the pH value. The measurement is performed with commercially available combined pH electrodes.
Key Features :
- Simultaneous measurement of pH additional to other measuring values
- Additional, simultaneous measurement of the pH value
- The pH results are shown on the display of the master instrument
- Operation of the pH measuring module via the master instrument
- Simple retrofitting of the pH measuring module into existing DMA M instruments
- The pH ME Beverage Measuring Module measures beverages and similar samples like non-aggressive aqueous solutions in non-pressurized analyzing systems
- The pH ME Measuring Module, in comparison with the pH ME Beverage Measuring Module, enables to measure chemical samples but is also designed for use in pressurized beverage analyzing systems (PBA systems)
Technical specifications :
Measuring range | |||
---|---|---|---|
pH | 0 to 14 | ||
Repeatability s.d. | |||
pH | 0.02 (in the range from 3 to 7) | ||
Additional information | |||
Sample volume | approx. 6 mL | ||
Dimensions (L x W x H) | 150 x 70 x 160 mm ( 5.9 x 2.8 x 6.3 inches) | ||
Weight | approx. 0.5 kg (1.04 lbs) | ||
Power supply | provided by the master instrument of the respective measuring system |
