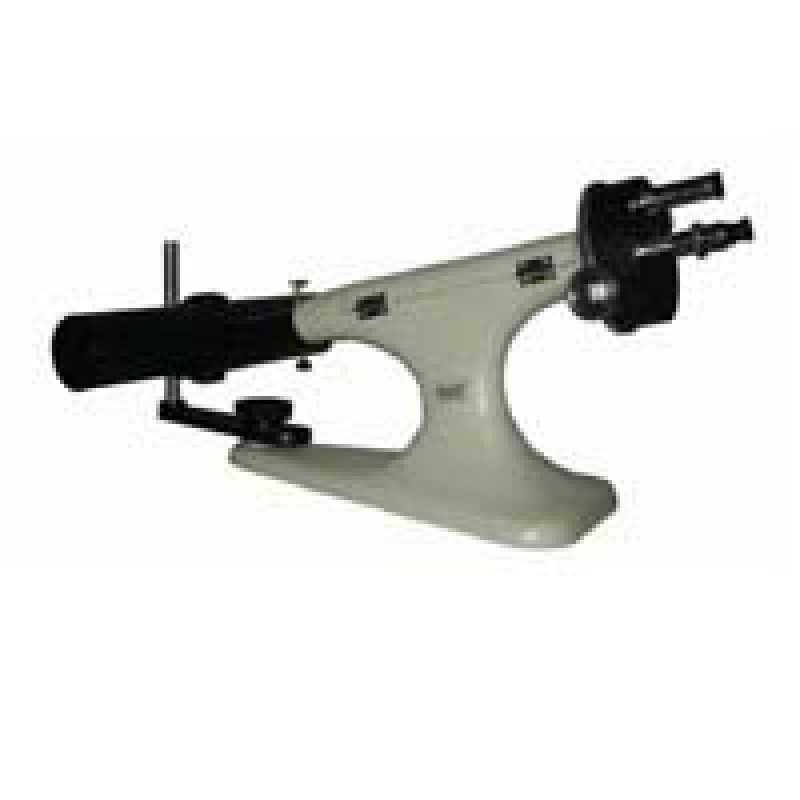

‘GOKO’ LABORATORY POLARIMETER
Model : POL - 220
Designed for quick and accurate determination of optical rotation of Sugar, Invert sugar, Salts, Medicines, Syrups etc. in higher accuracy. Instrument suitable for testing and quality control of products during manufacturing process, and for higher education institutions. A highly sensitive instrument consists of half shade device workable on sodium light source.
Body | Aluminium metal heavy body rigid in construction |
Workable tube length | 200mm |
Measuring scale | 0 to 360 circular scale divided in single degrees, every 10th line numberd and every 5th line extended with 0.05 vernier reading |
Sugar scale | -0 to 30 and +0 to 130º divided in single degrees, every 10th line numberd and every 5th line extended |
Scale housing | Consists of upper eyepiece for scale focusing and reading and lower eyepiece for half shade device focusing |
Light source | 35w Sodium lamp with suitable transformer, Input 220-230v AC, 50Hz. |
Sample tubes | 100mm, 200mm, (One each) made from Borosil thick wall glass with Brass holders |
Standard Accessories | sodium light lamp 35w and transformer , 2 sample tubes, dustcover, instruction / working manual. |
Packing | Plywood box. Weight 15kg approx. |
