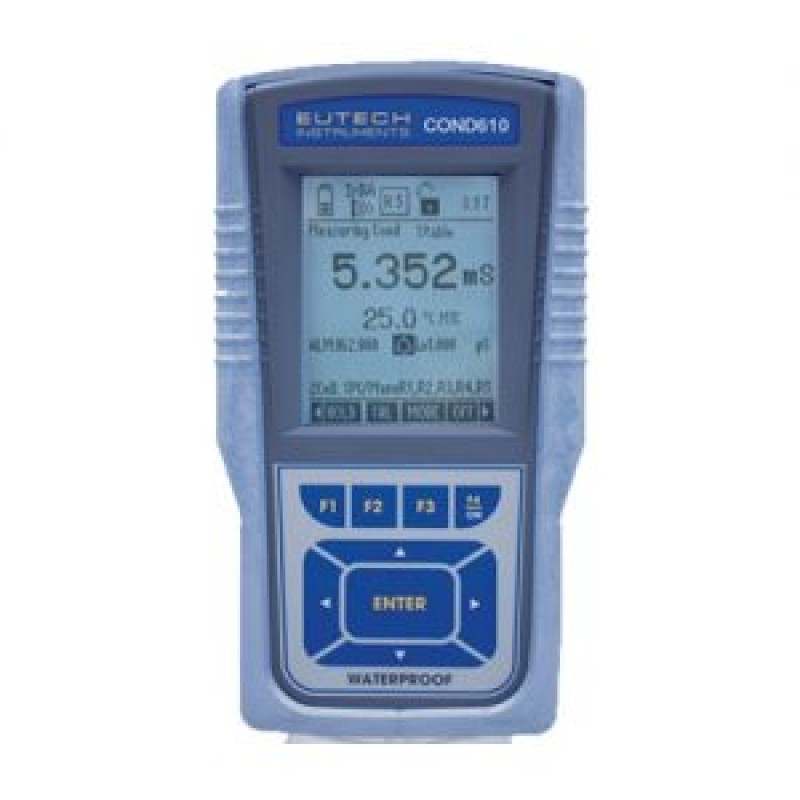

CON 610
Product Features :
- Study waterproof design suitable for outdoor use
- Up to 5 conductivity ranges in one meter with auto-ranging capability. It accepts 2 cell and 4 cell conductivity probes for a wide measurement range of up to 500mS/cm
- High accuracy with ±1% full scale accuracy at 3-decimal resolution
- Backlit LCD screen with multi data display
- Cal Due alarm for periodic calibration updates
- Measures pure water with non-linear temperature coefficient option
- Meter logs reading automatically within seconds of measurements
- RS 232 through LED, USB / IrDA Interface Adapter
- Allows users to view readings, electrode performance status and other relevant information all in one display.
- It allows you to automatically log up to 500 data sets in GLP-compliant format with time and date stamping
- Non-volatile memory and personal password protection
Product Description :
Product Specification | Description |
Conductivity Range | 0 to 2.000 μS/cm,2.000 μS/cm to 300.0 μS/cm, 300.0 μS/cm to 4.000 mS/cm,4.000 mS/cm to 40.00 mS/cm,40.00 mS/cm to 500.0 mS/cm |
Resolution / Accuracy | 0.01 μS/cm, 0.1 μS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm (0.05% of full scale) ; ±1 % full scale of each range |
TDS Range | 0 to 2.000 ppm,2.000 ppm to 300.0 ppm,300.0 ppm to 4.000 ppt,4.000 ppt to 40.00 ppt,40.00 ppt to 200.0 ppt Factor : 0.40 to 1.00 |
Resolution / Accuracy | 0.01 ppm, 0.1 ppm, 0.001 ppt, 0.01 ppt, 0.1 ppt (0.05% of full scale) ; ±1 % full scale of each range |
Salinity Range | 0 to 0.770 ppm,0.770 ppm to 143.3 ppm,143.3 ppm to 2.138 ppt,2.138 ppt to 23.64 ppt,23.64 ppt to 80.00 ppt |
Resolution/Accuracy | 0.01 ppm, 0.1 ppm, 0.001 ppt, 0.01 ppt (0.05% of full scale) ; ±1 % full scale of each range |
Resistivity Range | 2.000 Ω to 25.00 Ω,25.00 Ω to 250.0 Ω,250.0 kΩ to 3.333 kΩ,3.333 kΩ to 500.0 kΩ,500.0 kΩ to 20.00 MΩ |
Resolution/Accuracy | 0.01 Ω, 0.1 Ω, 0.001 Ω, 0.1 Ω, 0.01 MΩ (0.05% of full scale) ; ± 1% of full scale |
Temperature Range | -10.0 to 110.0 0C/14.0 to 230.0 0F (Meter) |
Resolution/Accuracy | 0.1 0C / 0.1 0F ; ± 0.5 0C / ± 0.9 0F |
Temperature Compensation | ATC / MTC (0 to 100 °C) |
Temperature Coefficient | Linear /Pure |
Temperature Normalization | 15 or 30 °C |
Cell Constant | 0.010 to 10.000 |
Calibration Points | 4(1 per range) Auto; 5(1 per range) Manual |
Cal. Due Alarm | Yes |
Automatic Endpoint | Yes |
Data logging | 500 Data sets (Non-Volatile memory) |
GLP | Yes |
Communication | USB / IrDA Interface Adapter (for 600 Series Meter to PC Communication) to be ordered separately |
LCD Display | Back-lit dot matrix;7.1 cm (H) x 5.4 cm (W) |
Input Conductivity | 8 Pin connector |
Electrode | Included 4-cell cond. electrode ECCONSEN9203J , K= 0.530 , 3 m cable length |
Ingress Protection | IP67 |
Power | Included 4 x 1.5 V “AA” Alkaline batteries or 9 VDC adaptor, 500 mA |
Dimensions (L x W x H) | Meter 18.3 x 9.5 x 5.7 cm Boxed 23.5 x 16 x 15.5 cm |
Weight | Meter 460 g Boxed 800 g |
