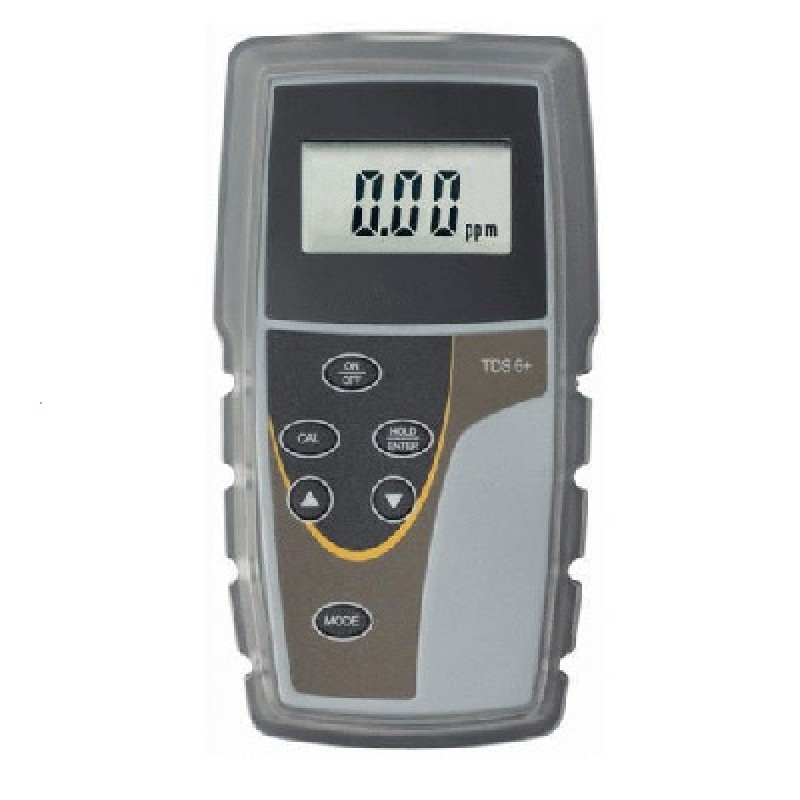

Eutech TDS Meter
Product Details :
Features:
- Multi-Point Push-button Calibration (up to 5 points) with ±1% full scale accuracy
- Automatic or Manual Calibration – for quick, easy calibration; use automatic mode with preset calibration points at most popular values or manually set values in the manual mode for more flexibility
- Auto-Ranging for Conductivity/TDS measurements for fast response and best resolution over wide measurement range
- Adjustable TDS Factor for more accurate measurement (for TDS 6 model only)
- Automatic Temperature Compensation (ATC) for the optimum accuracy under fluctuating temperatures
- Hold Function momentarily freezes reading for easy viewing
- Auto-Power Off saves battery power after non-use
- Self-Diagnostic with message codes for easy troubleshooting
- Large Custom LCD provides optimum viewing even at a distance
- Electrode with Built-in ATC designed for minimal air bubble entrapment during measurement
- Protective Rubber Boot shields meter from drops and features a sturdy built-in stand for easy bench-top operation
- Meter Kit (Optional) – contains everything you need for calibration and measurement in a rugged carrying case
Specifications :
TDS Range | 0 to 9.99ppm*; 10.0 ppm to 99.9 ppm; 100 ppm to 999 ppm; 1.00 ppt to 99.9 ppt |
*Max. 199.9 ppt (depending on factor setting) | |
Resolution & Accuracy | 0.01, 0.1, 1 ppm & 0.01, 0.1, 1 ppt; |
±1% Full Scale | |
TDS Factor | 0.40 to 1.00 (default 0.67) |
Temperature Range | 0 to 100.0 °C |
Resolution & Accuracy | 0.1 °C & ± 0.5 °C |
Temperature Compensation | Automatic / Manual (0 to 80 °C) |
Cell Constant | 0.1, 1.0, 10.0 (selectable) |
Temperature Coefficient | 2%/°C |
No. of Calibration Points | Up to 5 max. (1 per range) |
Special Functions | Auto Power-Off after 17 minutes; |
Hold & Self-diagnostic messages | |
Power | 4 ‘AAA’ x 1.4V batteries |
