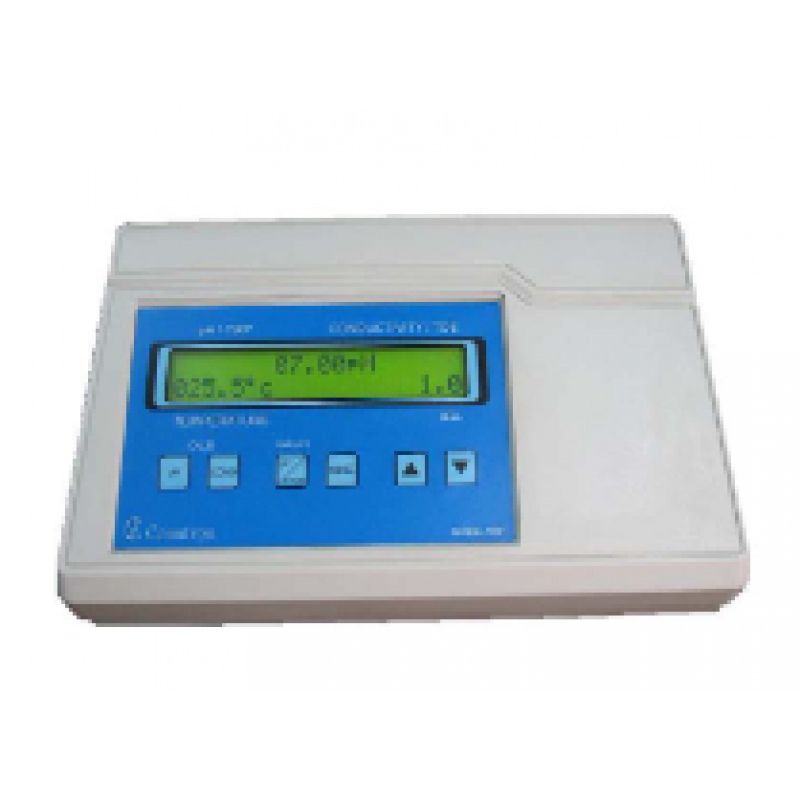

pH ORP Conductivity TDS Indicator
Product Details:
Features
- Accurate pH display with 0.01pH resolution
- Auto buffer recognition with 2 point calibration for pH
- Auto/Manual temperature compensation selectable for both pH and Conductivity
- 4 Step Range selection 0.1µs to 199.9ms for conductivity
- Cell Factor selectable for both 1.0 and 0.1
- Digital calibration for conductivity
- Auto Temp Compensation using PT100 sensor
- One touch switching between conductivity and pH display selections
- Large alphanumeric LCD display with bright backlight
- Aesthetically designed front panel with membrane switches and sleek bench top cabinet
Specification
Display | 2 line large alphanumeric display with back light illumination |
Ranges | pH: 0.00 to 14.00 pH |
Resolution | pH: 0.01pH |
Auto Temp. Comp. | 0-100˚C using PT100 external sensor for pH and Conductivity |
Manual Temp. Comp. | Settable from front panel from 0-100.0˚C for pH and Conductivity |
pH Calibration | 2 Point calibration with auto buffer recognition. |
Conductivity Calibration | Digital calibration by factor multiplication from 0.75-1.25 |
Accuracy | 0.5% ± 1 Digit |
Supply | 220V AC ±10% @ 50Hz |
Enclosure | Plastic (ABS). Size – 272x192x90mm |
Weight | 900gms |
