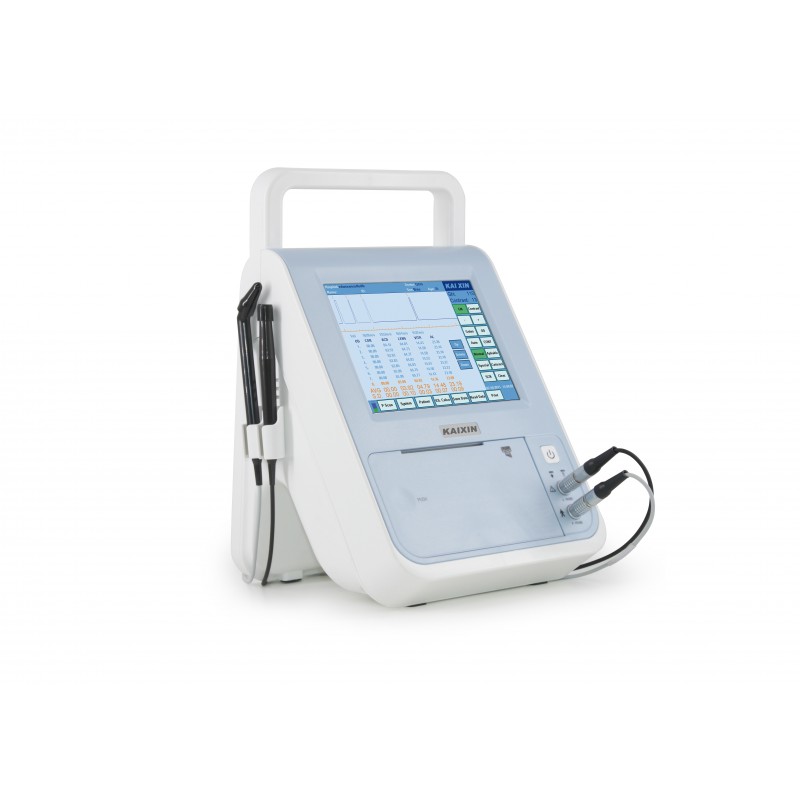

OD1-AP Bio&Pachy meter

OD1-AP Function

Show actual value and deviation at the same time

Sensitive , convenient, accurate and fast measurement

The probe service life is long, better cost performance

Point and surface point measurement display

Cabinet and delicate foot switch, convenient operation

Calculate the calibration value of intraocular pressure

(after achieving accurate intraocular pressure)

Ultrasonic velocity and offset is adjustable, compare

measuring results with other equipment easily

5.7’ color LCD touch screen, and user information

Can be easily input, more convenient and quick

Accurate data

IOL calculation

SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS,any of two groups can control display.

Calculate IOL, DEM, DAM, REEF, etc.And long term save 100 groups ofmeasurement results of A scan

A-SCANBiometer measurementntegration of AL measurement andIOL calculation.Reading average and

standard deviation improve readingaccuracy and liability.4 automaticmeasuring mode:Normal,Cataract,Aphakic and Special

Specification

Models: OD1-A Biometer only

Power requirement: AC 100-240V 50-60Hz

Rated input:DC12V 3.0A

Dimension: 200*168*165(mm, L*W*H)

Weight of main unit: approx. 1.7kg

(exclude the accessories)

Accessories

Footswitch Battery charger Adapter Gage block Touch screen pen Battery

Probe

10.0MHz A probe; 20.0MHz angled probe
