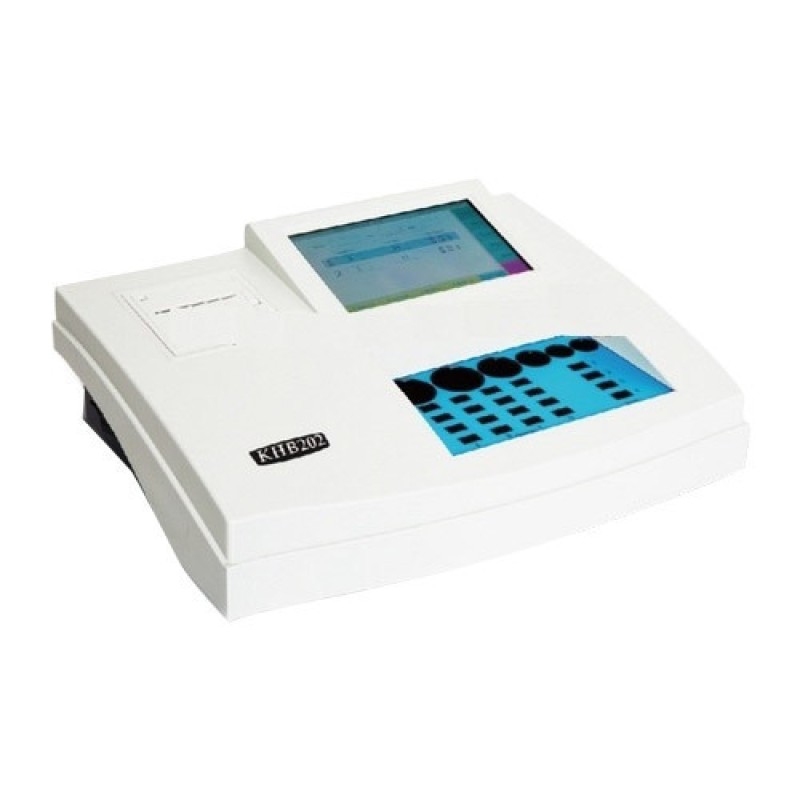

KHB-202 Coagulometer Analyzer

Product Details :

To cater the variegated needs of our esteemed customers, we are highly engaged in offering a wide array of KHB-202 Coagulometer Analyzer.

Details:

• KHB202 Coagulometer adopts the world approved coagulation test method; the CPU adopts ARM technology to measure the motion of the mag(net)ic ball to work out the coagulation time.
• It can perform multi-parameters simultaneously with better accuracy, precision and repetition.

Specifications:

• Dimensions: 420(L)x300(W)x170(H)mm
• Weight: 5Kg (net), 7Kg (gross)

Performance:

• Double magnetic route, stable performance, not liable to interference
• Dot-matrix LCD monitor
• 100 assay parameters and 1000 test results can be saved
• Touch keyboard
• Thermal printer
• Reagent-open, less consumption ( ≤200uL)
• Clock CMOS chip inserted
• Standard 232 serial interface

Technical character:

• Test method: magnetic ball method
• Sample consumption: ≤200uL
• Reagent consumption: 50uL~200uL
• Temperature: 37℃±0.5℃
• Adding sample: by a timing linkage
• Precision: ±10%; CV ≤10%
• Speed: ≤300s(depend on setting)
• Channel: 4/2/1
• Sample warming up position: 16/8/8
• Reagent warming up position: 6/6/6

Test Items

Main test:

• PT
• APTT
• TT
• FIB

Others:

• Hep
• ProC
• ProS
• Coagulation factor II, V, VII, VIII, IX, X, XI, XII
• AT-III
• AT
• RepT
• RVVT
• RVVCT
• RVVRT
• LA
