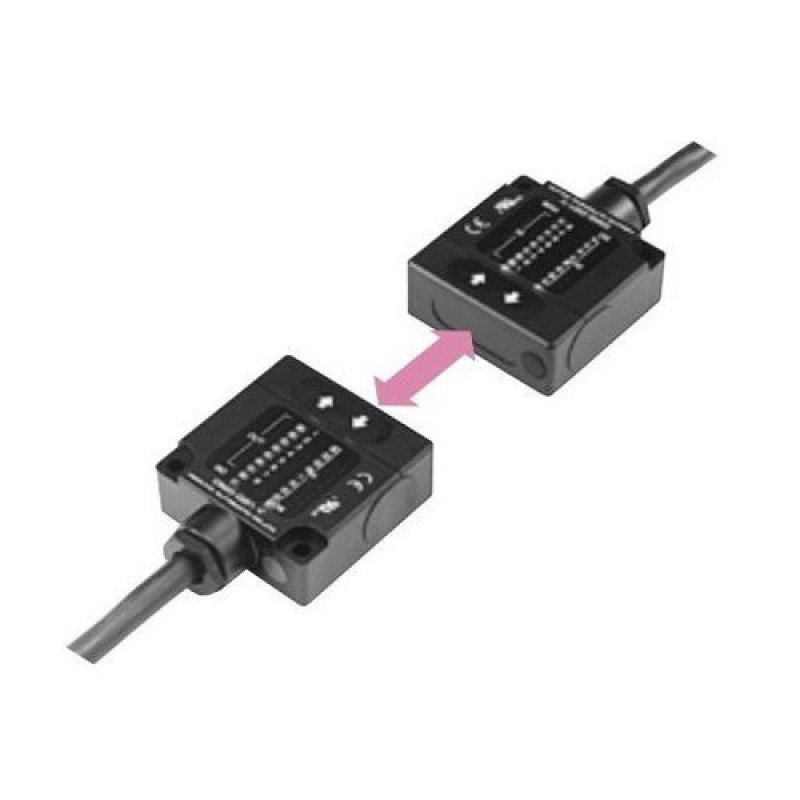

DMS Optical Data Transmission Device

Product details :

Transmission Method	Half duplex two-way transmission
Transmission Time	40msec or less
Modulation Method	Pulse modulation
Detection Method	Parity check
Projecting Element	Near infrared LED
Receiving Element	Photo-transistor
Power Source	10 to 30VDC (Available range)
Current Consumption	100mA or less
Current Consumption	100mA Max.

Other Details:
DMS Series
·         Instruction of destination/ Job to AGV Instruction of stacker crane address Data transmission between micro-com puters With projection amount adjuster
·         Area adjustment can be made by pr ojection amount adjuster.
·         It is suitable for data transmission such as interlocking with carrier robots, indicating destination of AGVs etc.
·         Price is as well reasonable level, with two models of 4BIT parallel type and two models of 8BIT parallel type.
