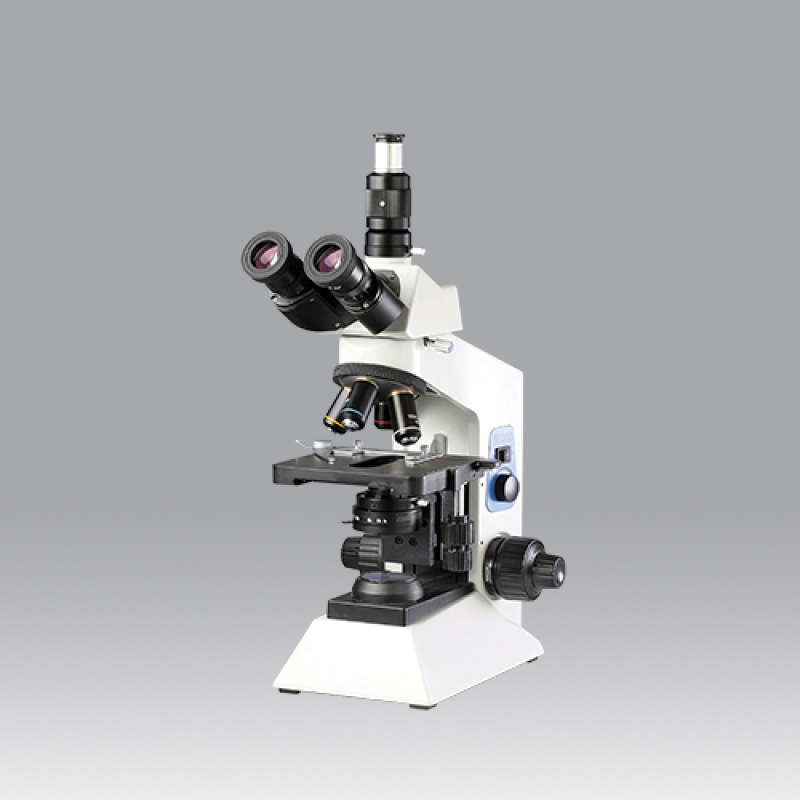

Biological Trinocular Microscope Model: Excel

Product Details :

Binocular Observation Head

• Siedentopf Observation head inclined at 30° rotatable at 360°.
• Vertical phototube for photomicrography.
• Diopter adjustment ring on ocular tube. (±5).
• Inter-pupillary distance from 48mm to 75mm.

Eyepiece (Anti fungus coated)

• Wide Field 10X (paired) F.O.V 20mm.

Objectives (Anti fungus coated)

• E-Plan Achromatic 4X
• E-Plan Achromatic 10X
• E-Plan Achromatic 40X(S.L.)
• E-Plan Achromatic 100X Oil(S.L.)

Mechanical Body

• Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• The slow motion has 1Div=0.002mm.
• Quadruple nosepiece revolves on ball bearing.
• Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls.
• Cross movement 76mm X 50mm.
• Sub Stage Condenser
• Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.

Illumination System

• The built-in-base illumination system with Ultra high brightness single 3W LED cold light source. Brightness control knob.

Standard Accessories

• Operating manual, dust cover, guarantee card and Styrofoam molded pack.
