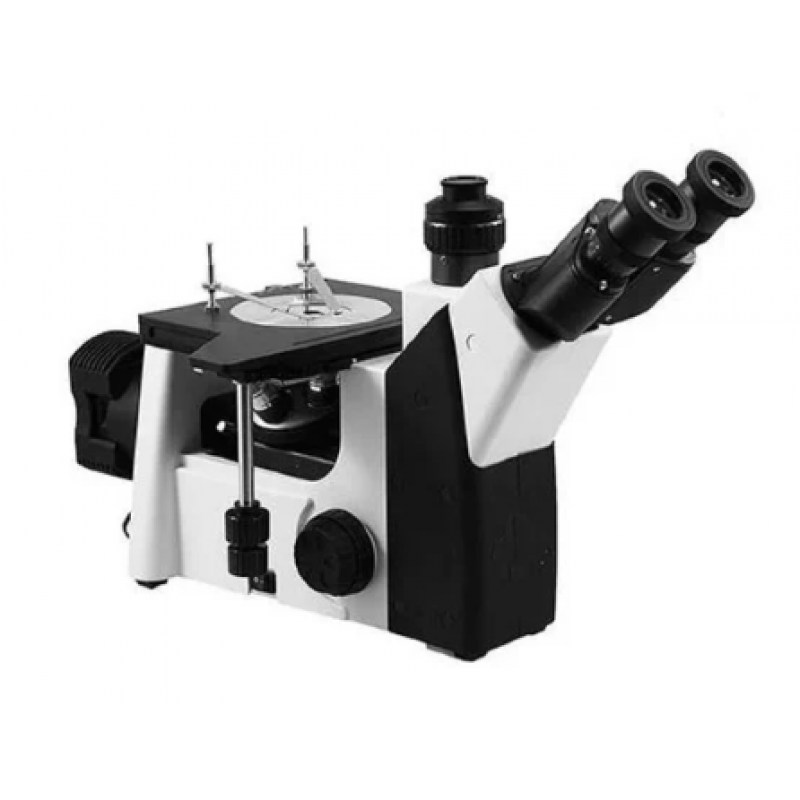

Conxport Inverted Metallurgical Microscope
Product Details:
Is It Portable | Portable |
Focus | Coaxial Coarse and Fine Focusing Knobs |
Illumination | Halogen 12V/50W -Reflected, Epi-Kohler illumination, ISO-CE |
Usage/Application | Laboratory |
Color | Black & White |
Brand | Conxport |
Eyepiece | WF 10X-22mm |
Reticule Eyepiece | WF 10X-20 mm (Cross Reticule 0.1mm) |
Objective | Objective , 5X/0.1,10X/0.25, 10X/0.25, 20X/0.4 (S), 50X/0.75 (S) and 100X/1.25 (S, oil) |
Head | Seidentopf Binocular / Trinocular Head Inclined 30 Degree, Rotatable 360 Degree, Interpupilary Distance: 48-75mm |
Nosepiece | Quintuple |
Mechanical Stage Size | Stage Size: 226 x 178mm, Travel: 40 x 40mm, stage 16, 40, Stage micrometer 0.01mm |
Filter | Green, Blue, Yellow, Grey And G Glass |
Polarizing | Polarizing and Analyzer Slide |
Attachments | Polarizing , Analyzer Slide and DIC |
